12" ARRAY 3060 M FAB BY ACR

Fitur

Sistem magnet ferrite high flux sampai dengan 12.300 Gauss.
Voice coil menggunakan former berbahan dasar non-conductive fiberglass untuk meminimalkan damping.
Penambahan lapisan spesial coating pada voice coil sehingga lebih tahan panas.
Desain voice coil berventilasi untuk sirkulasi udara yang bagus dan mengurangi tekanan udara pada speaker.
Lapisan anti air pada conepaper.

Spesifikasi
Diameter Speaker	12 inch

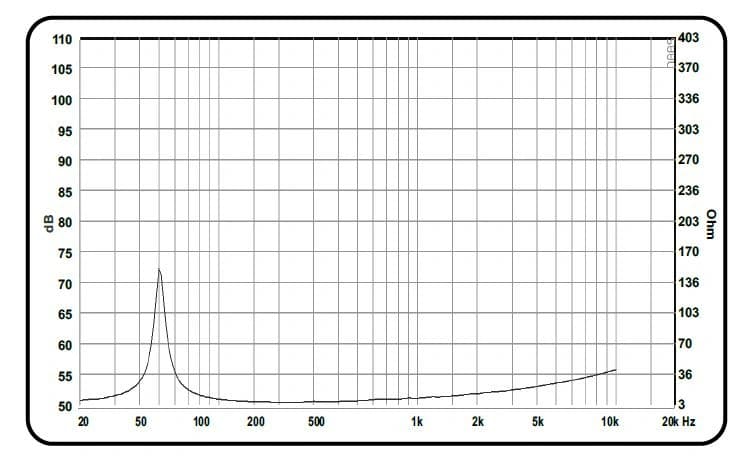

Impedansi	8 Ω
Nominal Power Handling⁽¹⁾	200 W
Daya Program⁽²⁾	400 W

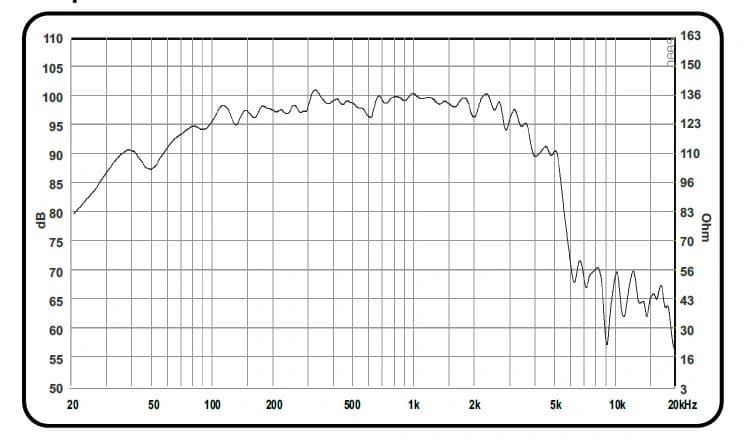

Lebar Frekuensi	47 – 3800 Hz
Sensitivity	98 dB
Medan Magnet	1.23 T
Berat Magnet	1.8 kg
Diameter Voice Coil	60.55 mm
Material Voice Coil	Till

Parameter Thiele-Small
Fs	47 Hz
DCR	5.2 Ω
Qts	0.38
Qes	0.39
Qms	14.47
Mms	57.5 g
Cms	0.17 mm/N
BL Product	15.5 Tm
Vas	71.1 litres
No	2.26 %
Sd	543.3 cm²
Xmax	6.6 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
