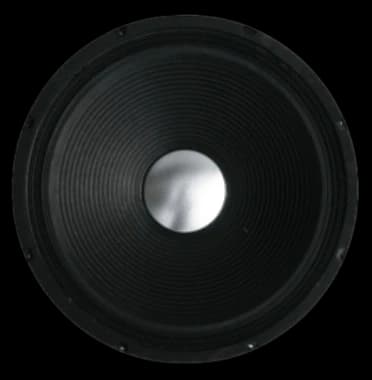

15" ACR 15400 PRO NEW

Spesifikasi
Diameter Speaker	15 inch
Impedansi	8 Ω
Nominal Power Handling⁽¹⁾	175 W
Daya Program⁽²⁾	350 W
Lebar Frekuensi	45 - 4800 Hz
Sensitivity	98 dB
Medan Magnet	0.9 T
Berat Magnet	1.56 kg
Diameter Voice Coil	49.5 mm
Material Voice Coil	Till

Parameter Thiele-Small
Fs	45 Hz
DCR	5.8 Ω
Qts	0.66
Qes	0.7
Qms	10.87
Mms	70.5 g
Cms	0.22 mm/N
BL Product	12.2 Tm
Vas	228.6 litres
No	2.09 %
Sd	865.7 cm²
Xmax	6.8 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
