Optimized Magnet Power
The motor design, developed using FEA (Finite Element Analysis), delivers optimal magnetic force.
Low Compression
The motor and chassis are designed with special ventilation to eliminate air compression and provide effective airflow for cooling.
Weatherproof Conepaper
The conepaper is made from 100% UKP material and coated with a weatherproof layer, producing excellent sound quality and making it suitable for both indoor and outdoor use.
Smooth Frequency Response
The conepaper is equipped with damping glue on the surround, delivering a smooth frequency response.
Maximum Power Handling
The voice coil winding is coated with a special layer, allowing it to endure high temperatures so the speaker can reliably handle high power levels.

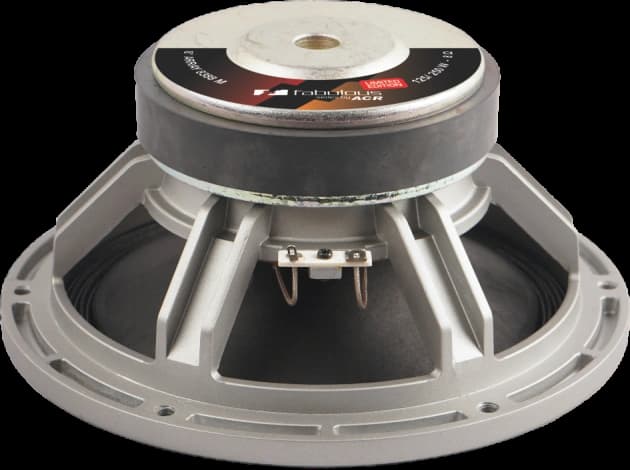

Specially Designed Chassis
The extremely sturdy chassis is made from high-quality diecast material and features a specially designed bottom section for efficient heat transfer.
| Specifications | |
| Speaker Diameter | 8 inch |
| Impedance | 8 Ω |
| Nominal Power Handling(1) | 125 W |
| Program Power(2) | 250 W |
| Frequency Response | 85 - 5900 Hz |
| Sensitivity | 94 dB |
| Magnetic flux density | 1.29 T |
| Magnet Weight | 0.81 kg |
| Voice Coil Diameter | 38.6 mm |
| Voice Coil Material | Till |
| Thiele-Small Parameters | |
| Fs | 81 Hz |
| DCR | 5.2 Ω |
| Qts | 0.59 |
| Qes | 0.68 |
| Qms | 4.61 |
| Mms | 18.8 g |
| Cms | 0.2 mm/N |
| BL Product | 8.6 Tm |
| Vas | 13.3 litres |
| No | 1.02 % |
| Sd | 216.4 cm² |
| Xmax | 5.84 mm |
