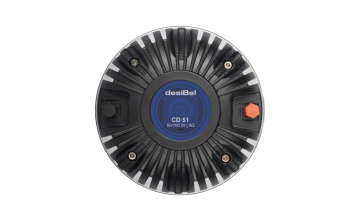

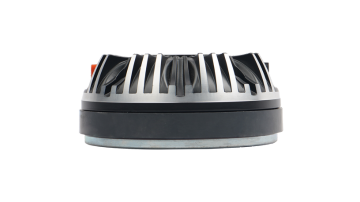

CD 51 Desibel

Categories: , , , ,
  • Description

Description

pdf-icon

 datasheet



SPECIFICATION (PRELIMINARY DATA)

Diameter Throat

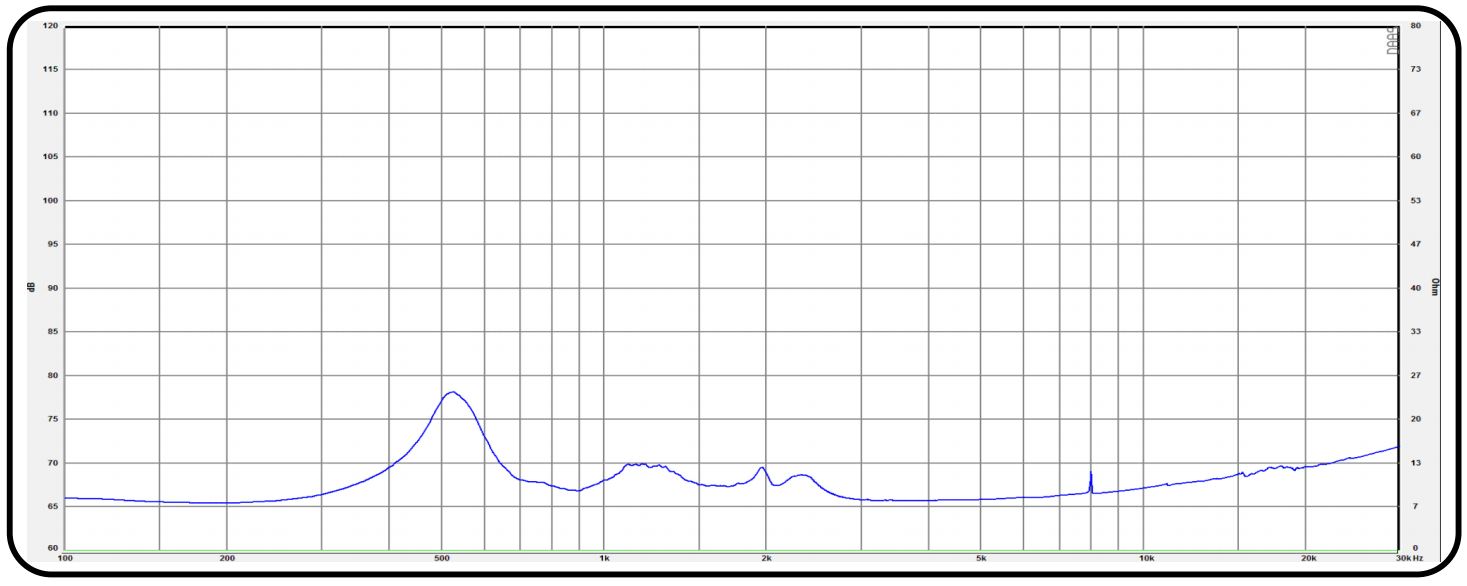

Impedansi
DC resistance, Re
Nominal Power Handling¹
Program Power²
Lebar Daerah Frekuensi
Sensitivity (2.83 V / 1 M)
Diameter Voice Coil
Material Former
Material Diaphram
Material Magnet
Medan Magnet
Berat Magnet
Berat Speaker
Recommended Crossover		 1 Inch / 25.4 mm
8 Ω
6.2 Ω
50 Watt
100 Watt
1500 Hz – 22200 Hz
108 dB
51 mm / 2 inch
Kapton
Titanium
Ferrite
1.59 T
0.83 kg / 29.15 Oz
2.56 kg
1800 Hz
– (¹) AES standard, test mode with continuous pink noise signal (-6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated minimal impedance. Loudspeaker in free air
– (²) Power on continous program is defined as 3dB greater than nominal power handling.
