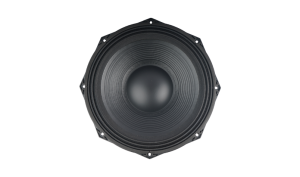

15″ PA 113156 Mk1 SW

Description

---

 datasheet

SPECIFICATION

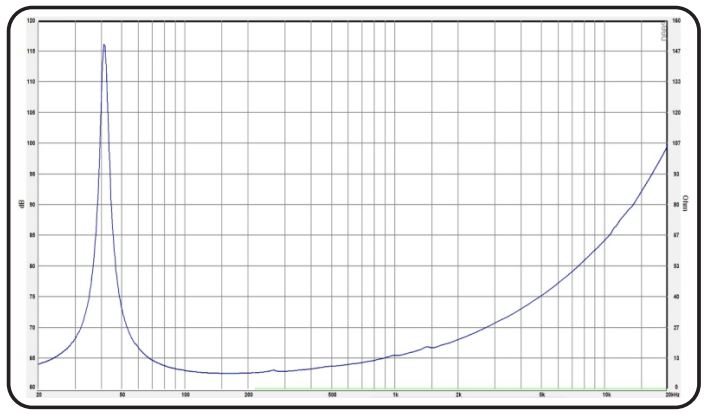

Diameter Speaker (inch/mm) Impedansi (Ω) Nominal power handling (Watt)¹ Program power (Watt)² Lebar daerah frekuensi (Hz) SPL (2.83 V / 1 m) (dB) Diameter cone efektif (mm) Medan magnet (T) Berat magnet (Kg/Oz) Voice coil diameter (mm) Voice coil material

15 inch / 381 mm 8 Ω 1100 Watt 2200 Watt 45 Hz – 2200 Hz 98 dB 331 mm 0.93 T 4.37 kg / 152.88 Oz 113 mm / 4.4 inch FIBSV

THIELE SMALL PARAMETER

Frekuensi Resonansi / Fs (Hz) DCR (Ω) Qts Qes Qms Mms (g) Cms (mm/N) BL Product (Tm) Vas (liters) No (%) Sd (cm2) Xmax (mm)

41 Hz 5.2 Ω 0.38 0.39 10.81 210.5 g 0.07 mm/N 27 Tm 72.9 liters 1.28 % 860.5 cm² 14.27 mm

– (¹) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours)
within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air
– (²) Power on continous program is defined as 3dB greater than nominal power handling.
