12″ 1230 BLACK | ACR Speaker

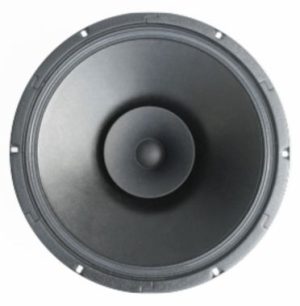

12″ 1230 BLACK

1230 Black
Categories: , , , , .
  • Description

Product Description


pdf-icon

 datasheet



SPECIFICATION

Diameter Speaker (inch/mm)
Impedansi (Ω)
Nominal power handling (Watt)¹
Program power (Watt)²
Lebar daerah frekuensi (Hz)
SPL (2.83 V / 1 m) (dB)
Diameter cone efektif (mm)
Medan magnet (T)
Berat magnet (Kg/Oz)
Voice coil diameter (mm)
Voice coil material
12 inch / 305 mm
8 Ω
100 Watt
200 Watt
53 Hz – 13900 Hz
95 dB
260.5 mm
1.03T
1.00 kg /35.08 Oz
38.5 mm
Kapton

THIELE SMALL PARAMETER

Frekuensi Resonansi / Fs (Hz)
DCR (Ω)
Qts
Qes
Qms
Mms (g)
Cms (mm/N)
BL Product (Tm)
Vas (liters)
No (%)
Sd (cm²)
Xmax (mm)
53 Hz
7.2 Ω
0.93
0.99
14.53
41.4 g
0.21 mm/N
10.1 Tm
82.3 liters
1.24 %
526.9 cm²
5.3 mm
– * IEC 268-5, (in box system, cut.off 20-500 Hz)



SPUL or VC VAILABLE
