Optimal Magnetic Power and Heat Resistance
Utilizes neodymium magnet material that withstands extremely high temperatures, with design optimized through FEA (Finite Element Analysis).
Low Compression
Features a ventilated voice coil to reduce air pressure on the speaker.
Low Distortion
Equipped with an aluminum ring module to significantly minimize distortion.
Minimal Damping and Maximum Power Handling
Uses a non-conductive fiberglass former to reduce damping, and the coil wire is coated with the latest technology to enhance power handling.
| Specifications | |
| Speaker Diameter | 12 inch |

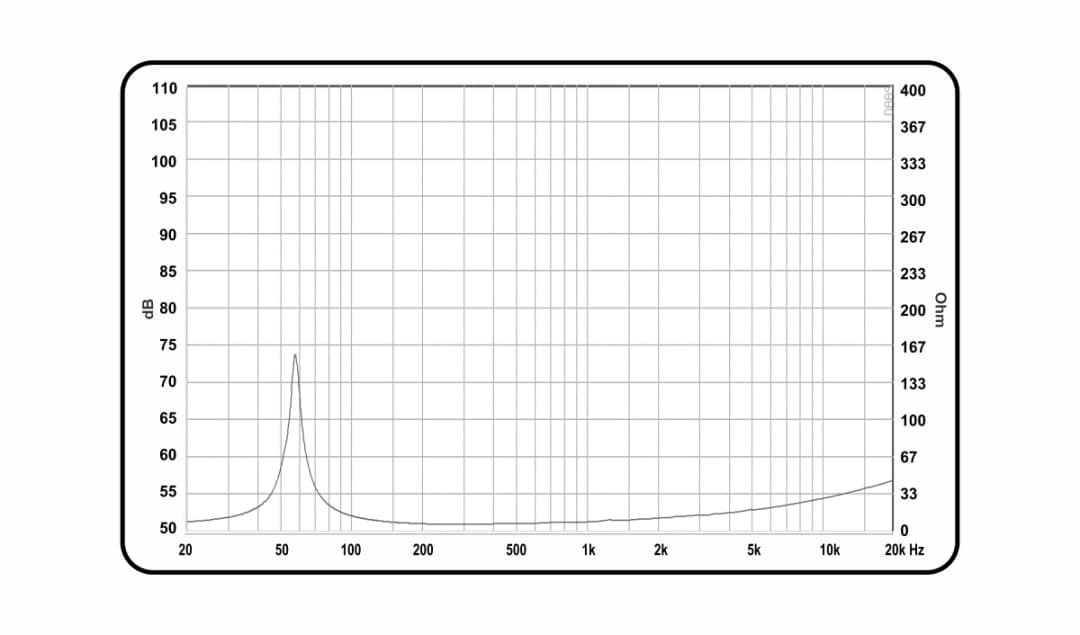

| Impedance | 8 Ω |
| Nominal Power Handling(1) | 400 W |
| Program Power(2) | 800 W |

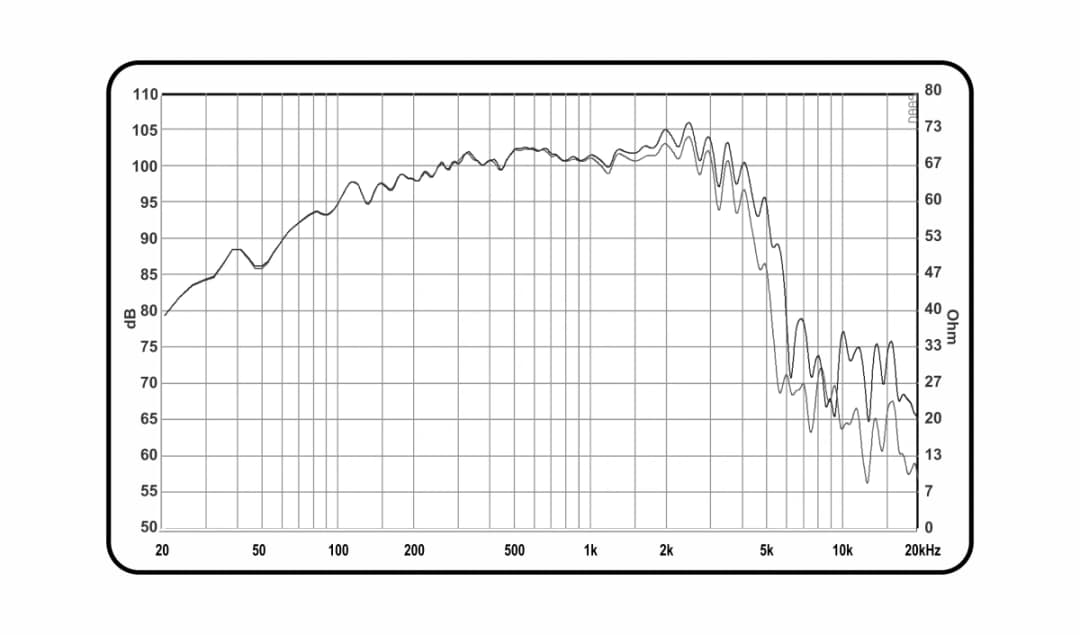

| Frequency Response | 60 – 5200 Hz |
| Sensitivity | 101 dB |
| Magnetic flux density | 1.35 T |
| Magnet Weight | 0.45 kg |
| Voice Coil Diameter | 75.55 mm |
| Voice Coil Material | Till |
| Thiele-Small Parameters | |
| Fs | 58 Hz |
| DCR | 5.2 Ω |
| Qts | 0.33 |
| Qes | 0.34 |
| Qms | 10.91 |
| Mms | 55.2 g |
| Cms | 0.14 mm/N |
| BL Product | 17.6 Tm |
| Vas | 56 litres |
| No | 3.15 % |
| Sd | 543.3 cm² |
| Xmax | 8.4 mm |
