Heat Resistant and Low Compression
The voice coil uses a bonder former that enhances the speaker’s resistance to high temperatures.
The motor and chassis are designed with ventilation to prevent air compression.
Weatherproof
The conepaper is highly durable and resistant to all weather conditions.
Sturdy Construction
The chassis features a strong structure made from aluminum die-cast material.
Optimized Magnet Power
The speaker’s magnetic motor delivers optimal power, designed using FEA (Finite Element Analysis) technology.
| Specifications | |
| Speaker Diameter | 12 inch |
| Impedance | 8 Ω |
| Nominal Power Handling(1) | 250 W |
| Program Power(2) | 500 W |

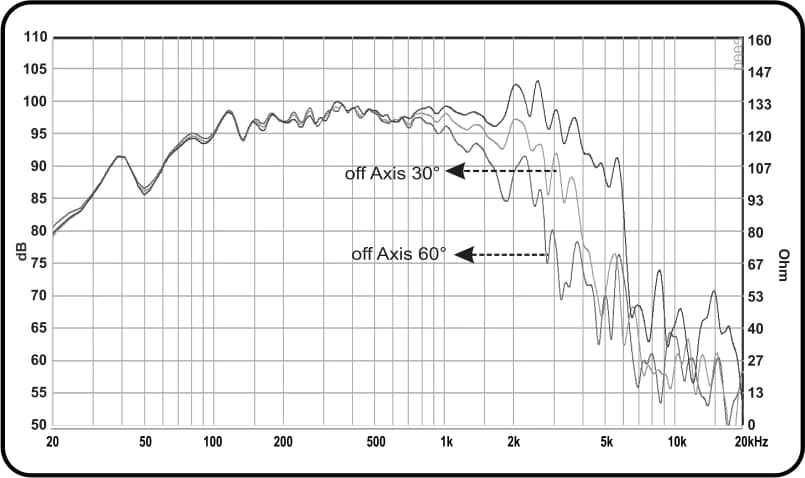

| Frequency Response | 44 – 5800 Hz |
| Sensitivity | 98 dB |
| Magnetic flux density | 1.14 T |
| Magnet Weight | 1.89 kg |
| Voice Coil Diameter | 65.55 mm |
| Voice Coil Material | Till |
| Thiele-Small Parameters | |
| Fs | 45 Hz |
| DCR | 6 Ω |
| Qts | 0.46 |
| Qes | 0.47 |
| Qms | 14.18 |
| Mms | 49 g |
| Cms | 0.26 mm/N |
| BL Product | 13.2 Tm |
| Vas | 92.4 litres |
| No | 1.69 % |
| Sd | 506.7 cm² |
| Xmax | 5.3 mm |
