12" PA 12900 PREMIER BY ACR

Features

Multiple roll-type surround design results in lower distortion.
4-inch voice coil with a former that withstands high temperatures and handles high power.
Ideal for bass reflex enclosures or midbass horn applications.
High-power 12" woofer / midbass.

Specifications
Speaker Diameter	12 inch

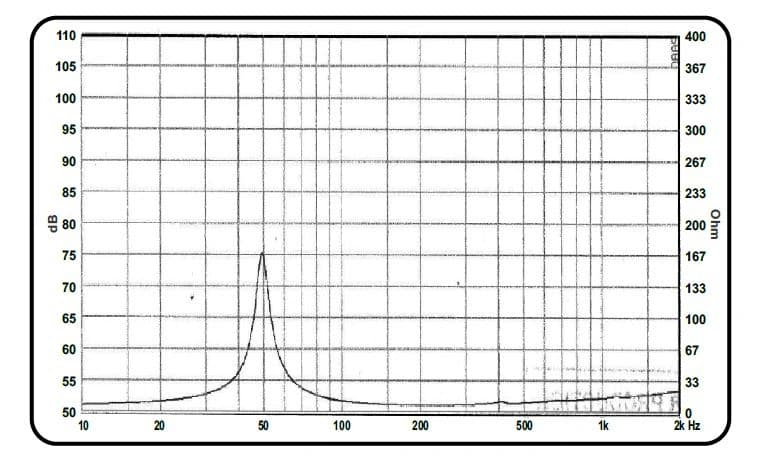

Impedance	8 Ω
Nominal Power Handling⁽¹⁾	300 W
Program Power⁽²⁾	600 W

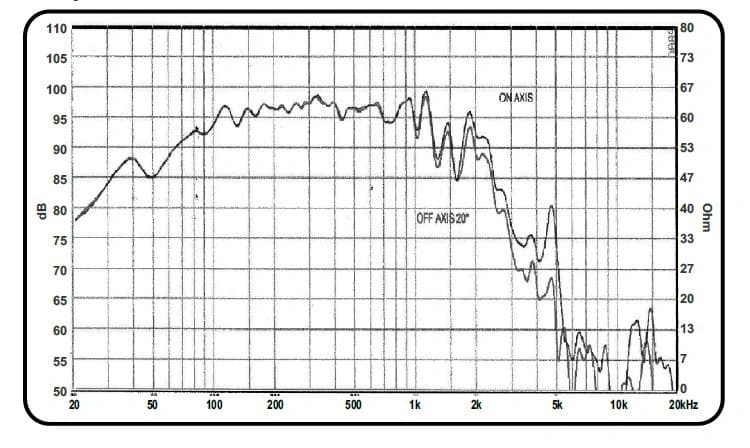

Frequency Response	48 – 2400 Hz
Sensitivity	97 dB
Magnetic flux density	1.08 T
Magnet Weight	2.7 kg
Voice Coil Diameter	99.2 mm
Voice Coil Material	Till

Thiele-Small Parameters
Fs	48 Hz
DCR	5.8 Ω
Qts	0.31
Qes	0.32
Qms	9.52
Mms	80.6 g
Cms	0.13 mm/N
BL Product	21.2 Tm
Vas	56.5 litres
No	2.07 %
Sd	564.1 cm²
Xmax	8.2 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
