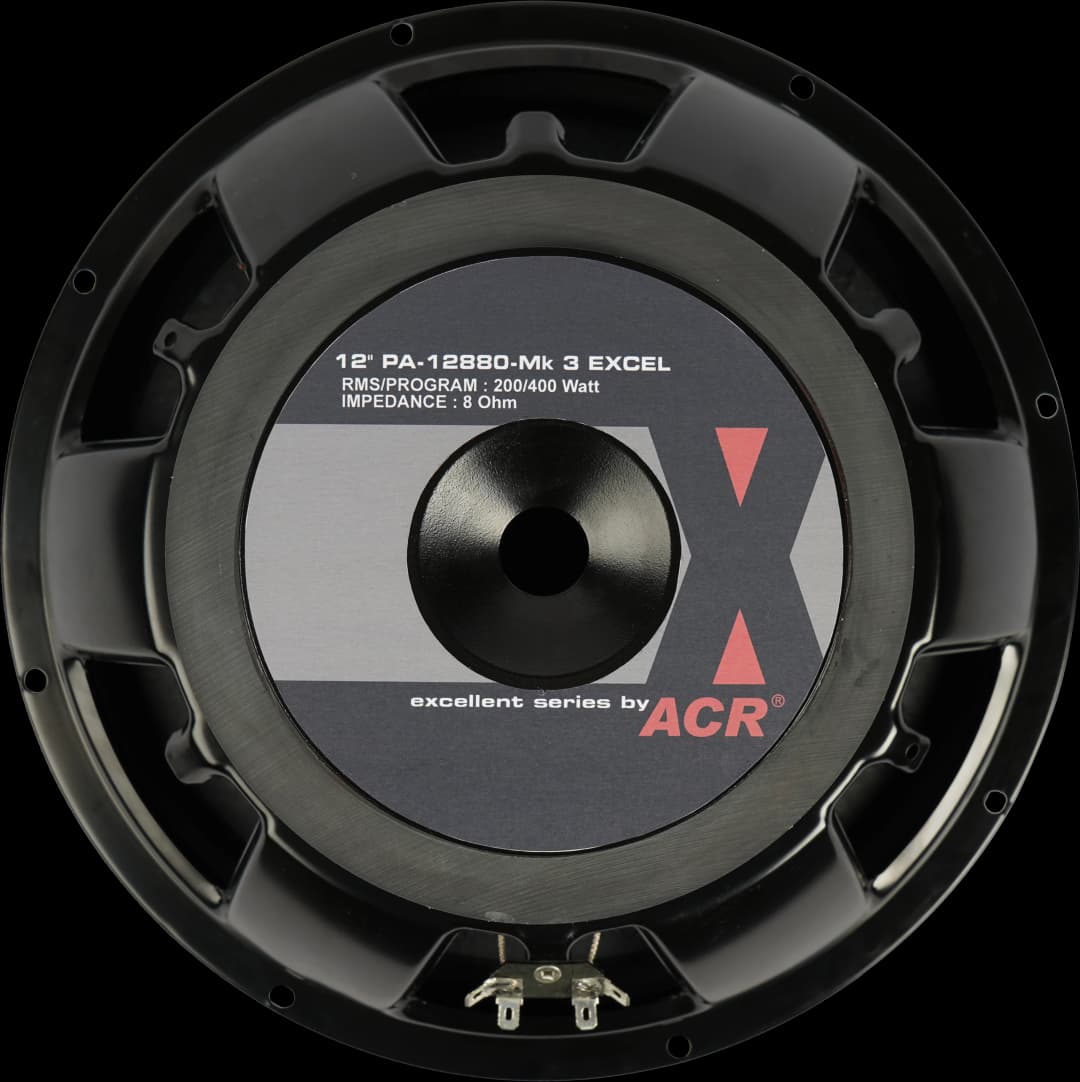

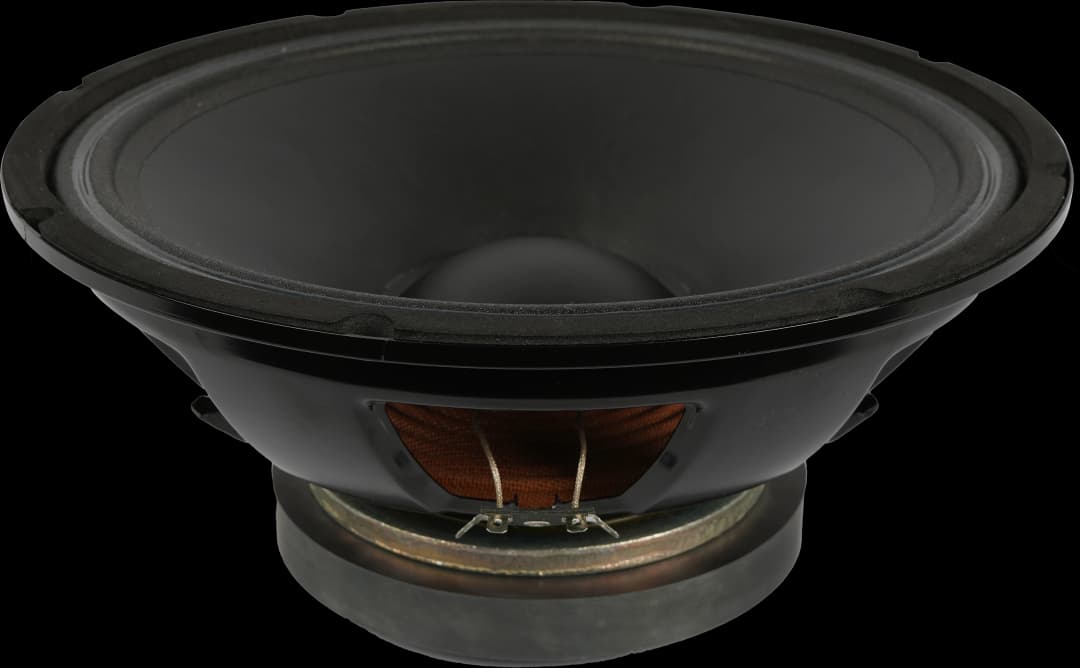

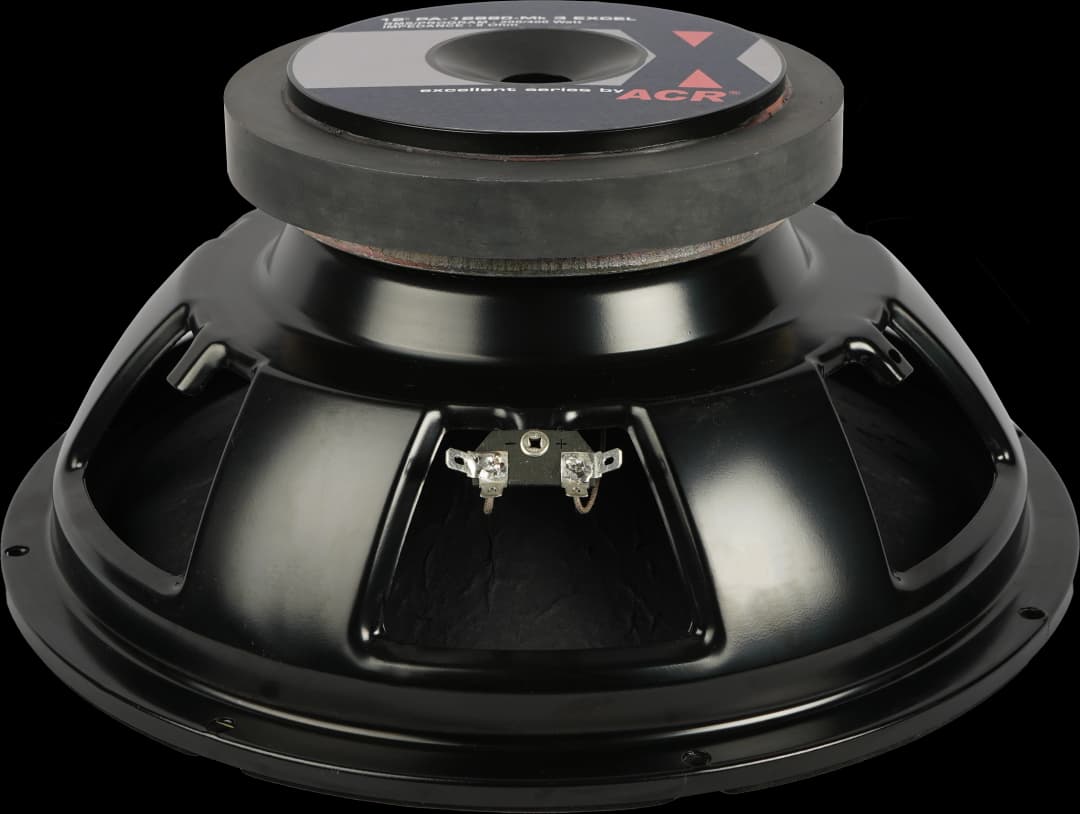

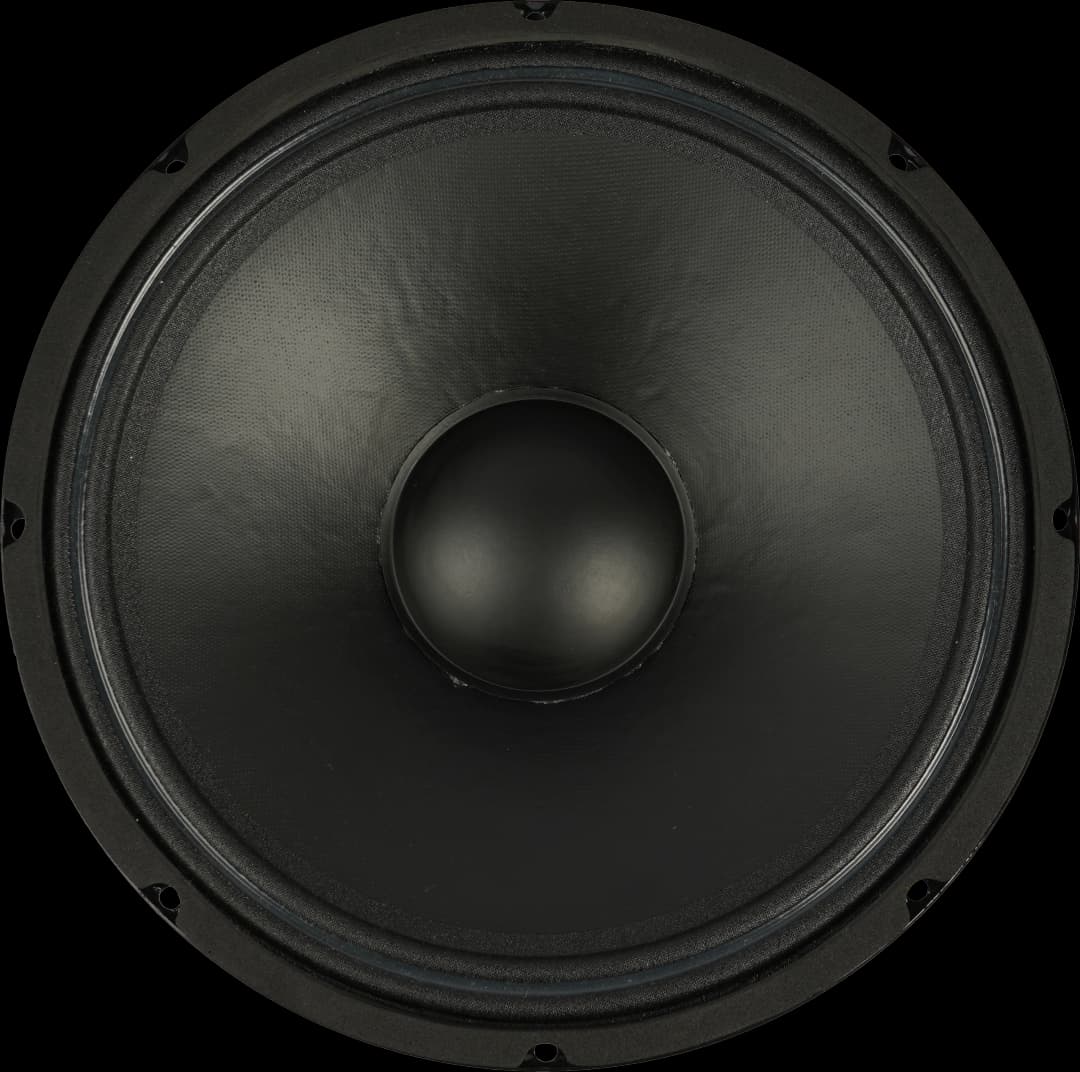

12" PA 12880 Mk3 EXCEL BY ACR
Woofer - Midbass
Features
1. Optimal magnetic power The motor design, optimized through Finite Element Analysis (FEA), delivers optimal magnetic power. 2. Weather-resistant cone The cone features a weather-resistant coating, making it suitable for both indoor and outdoor applications. 3. Smooth frequency response The cone—featuring an M-type cloth surround with applied damping glue—delivers a smooth frequency response. 4. Minimal compression The motor is designed with specialized ventilation to eliminate air compression and facilitate airflow for cooling purposes.
| Specifications | |
| Speaker Diameter | 12 inch |

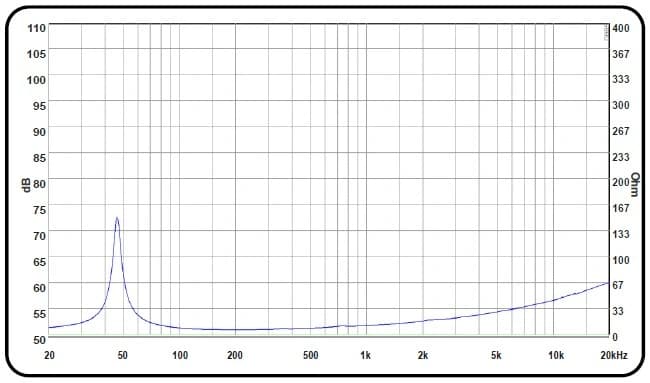

| Impedance | 8 Ω |
| Nominal Power Handling(1) | 250 W |
| Program Power(2) | 500 W |

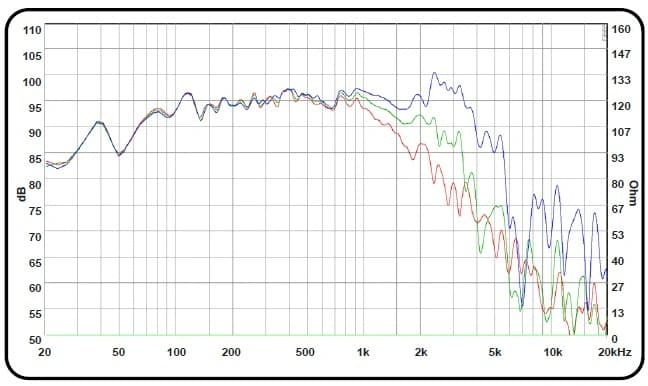

| Frequency Response | 46 – 5500 Hz |
| Sensitivity | 95 dB |
| Magnetic flux density | 1.04 T |
| Magnet Weight | 1.81 kg |
| Speaker Weight | 4.86 kg |
| Voice Coil Diameter | 60.55 mm |
| Voice Coil Material | Till |
| Thiele-Small Parameters | |
| Fs | 46.4 Hz |
| DCR | 5.6 Ω |
| Qts | 0.42 |
| Qes | 0.43 |
| Qms | 11.17 |
| Mms | 60.1 g |
| Cms | 0.2 mm/N |
| BL Product | 15 Tm |
| Vas | 81 litres |
| No | 1.8 % |
| Sd | 543.3 cm² |
| Xmax | 5.2 mm |
(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air
(2) Power on continous program is defined as 3dB greater than nominal power handling.
