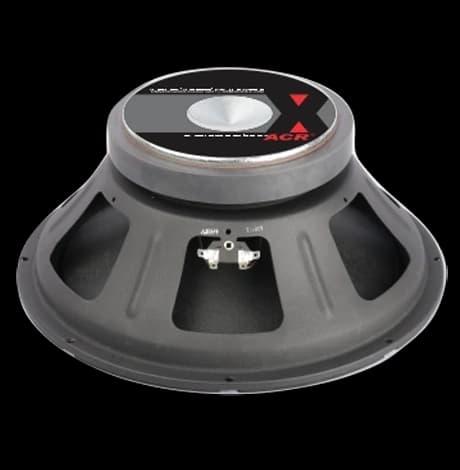

12" PA 12880 Mk2 EXCEL BY ACR

Features

Optimal Magnetic Power
The speaker's magnetic motor delivers optimal power thanks to a design developed using FEA (Finite Element Analysis) technology.
Weatherproof
The sturdy conepaper is coated with a black layer, making it resistant to all weather conditions.

Specifications
Speaker Diameter	12 inch

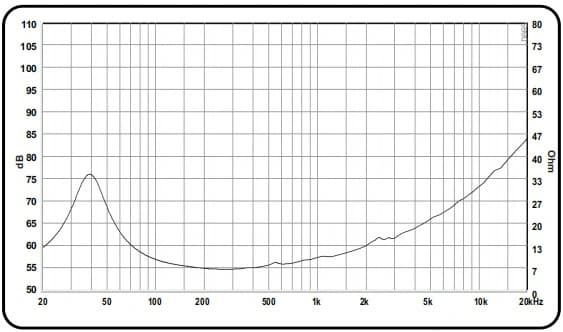

Impedance	8 Ω
Nominal Power Handling⁽¹⁾	300 W
Program Power⁽²⁾	600 W

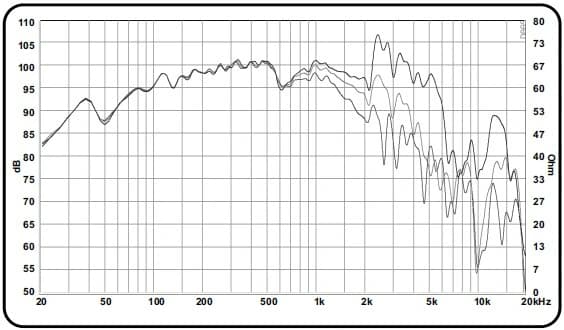

Frequency Response	40 – 6100 Hz
Sensitivity	98 dB
Magnetic flux density	1.24 T
Magnet Weight	1.77 kg
Voice Coil Diameter	60.55 mm
Voice Coil Material	Kapton

Thiele-Small Parameters
Fs	40 Hz
DCR	5.2 Ω
Qts	0.3
Qes	0.35
Qms	2.01
Mms	45.6 g
Cms	0.37 mm/N
BL Product	12.8 Tm
Vas	150.8 litres
No	2.45 %
Sd	543.3 cm²
Xmax	6.6 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
