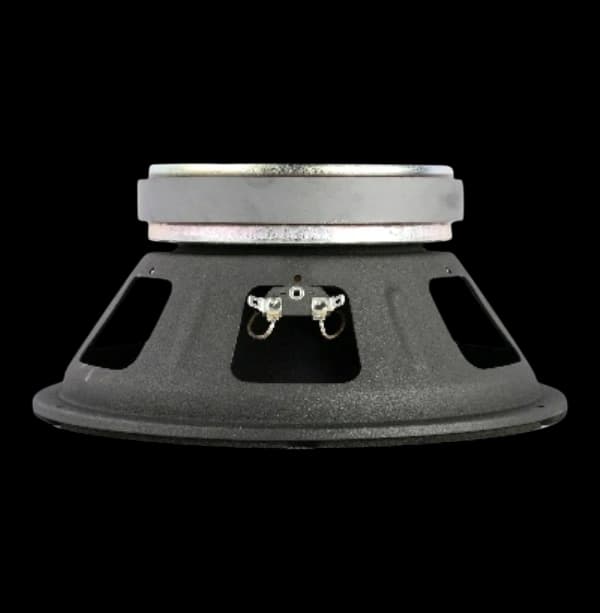

10" PA 10880 Mk2 EXCEL BY ACR

Features

Optimal Magnetic Power
The speaker’s magnetic motor power is optimized through a design that uses FEA (Finite Element Analysis) technology.
Weatherproof
The durable conepaper is coated with a black weather-resistant layer, making it suitable for all weather conditions.

Specifications
Speaker Diameter	10 inch

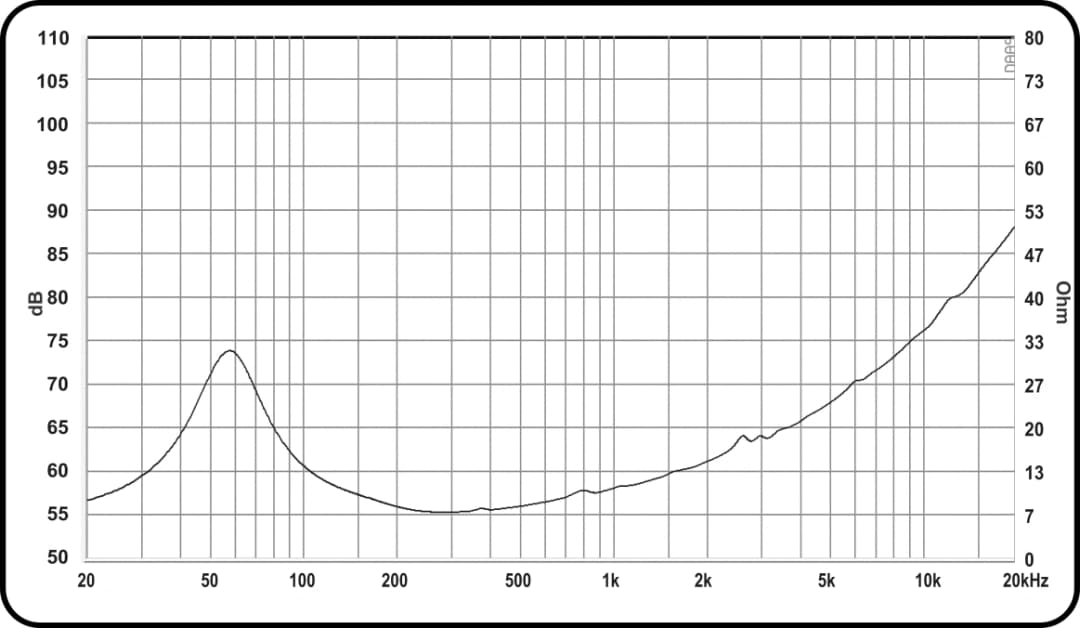

Impedance	8 Ω
Nominal Power Handling⁽¹⁾	250 W
Program Power⁽²⁾	500 W

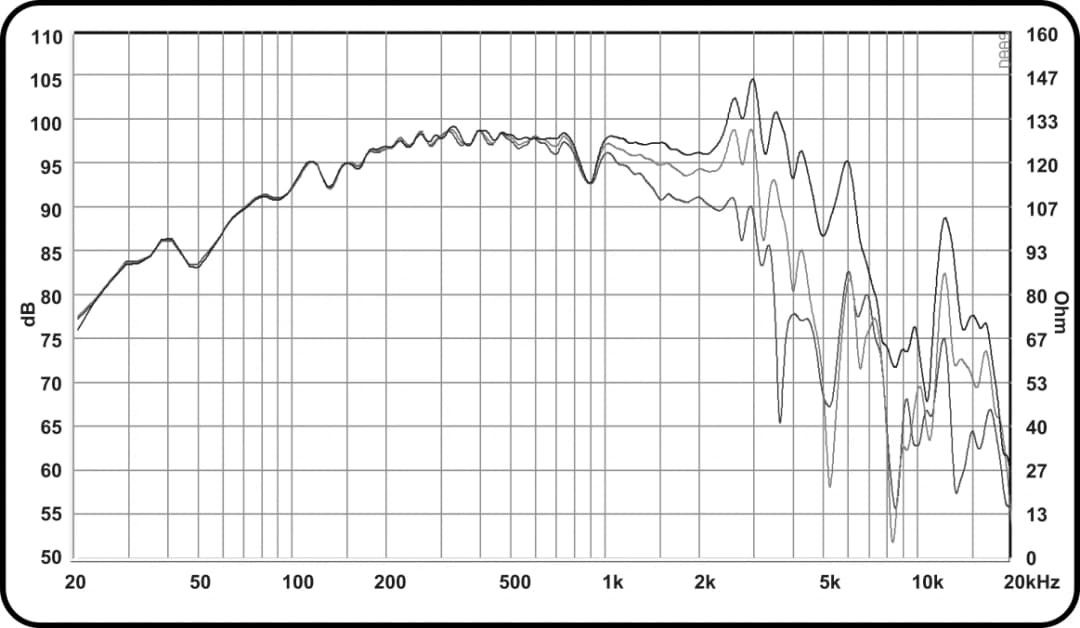

Frequency Response	60 – 6400 Hz
Sensitivity	97 dB
Magnetic flux density	1.1 T
Magnet Weight	1.44 kg
Voice Coil Diameter	60.55 mm
Voice Coil Material	Kapton

Thiele-Small Parameters
Fs	60 Hz
DCR	5.7 Ω
Qts	0.33
Qes	0.41
Qms	1.86
Mms	36.4 g
Cms	0.21 mm/N
BL Product	13.6 Tm
Vas	39.3 litres
No	1.8 %
Sd	366.4 cm²
Xmax	6.2 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
