Optimized Driver Motor Structure Design
The motor structure design uses a ferrite magnet simulated with FEMM to produce an optimal driver motor system.
Wide Frequency Response Range
The specially designed dome made of titanium allows the compression driver to deliver a wider frequency response range (1000 Hz – 20,000 Hz) with better performance in the high-frequency area.
Ideal for Compact 2-Way Systems & Multi-Driver Line Array Systems
The 2.55-inch (65 mm) voice coil design with a 1.4-inch (35.6 mm) exit throat on the compression driver makes it highly suitable and ideal for compact 2-way systems and multi-driver line array systems, delivering improved sound quality.
| Specifications | |
| Impedance | 8 Ω |
| Nominal Power Handling(1) | 70 W |
| Program Power(2) | 140 W |

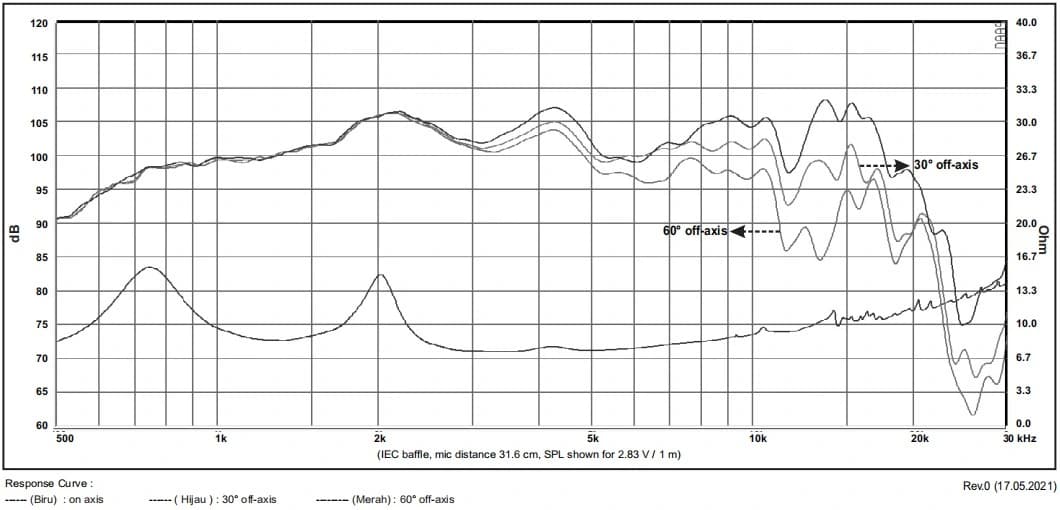

| Frequency Response | 1000 – 20000 Hz |
| Sensitivity | 99 dB |
| Magnetic flux density | 1.6 T |
| Magnet Weight | 1.41 kg |
| Speaker Weight | 3.76 kg |
| Voice Coil Diameter | 65 mm |
