Low-Distortion and Efficient Driver Motor System
The driver motor structure design uses a ferrite magnet and is simulated with FEMM, resulting in an optimized motor driver with low distortion and greater efficiency at high frequencies.
Bolt-On System for Easy Horn Application
The bolt-on system provides more flexibility in selecting different types of horns and allows for easier installation.
Ideal for Compact 2-Way Systems & Multi-Driver Line Array Systems
The 1.75-inch (44.4 mm) voice coil with a 1-inch (25.4 mm) exit throat on the compression driver is highly suitable and ideal for compact 2-way systems and multi-driver line array systems.
| Specifications | |
| Impedance | 8 Ω |
| Nominal Power Handling(1) | 40 W |
| Program Power(2) | 80 W |

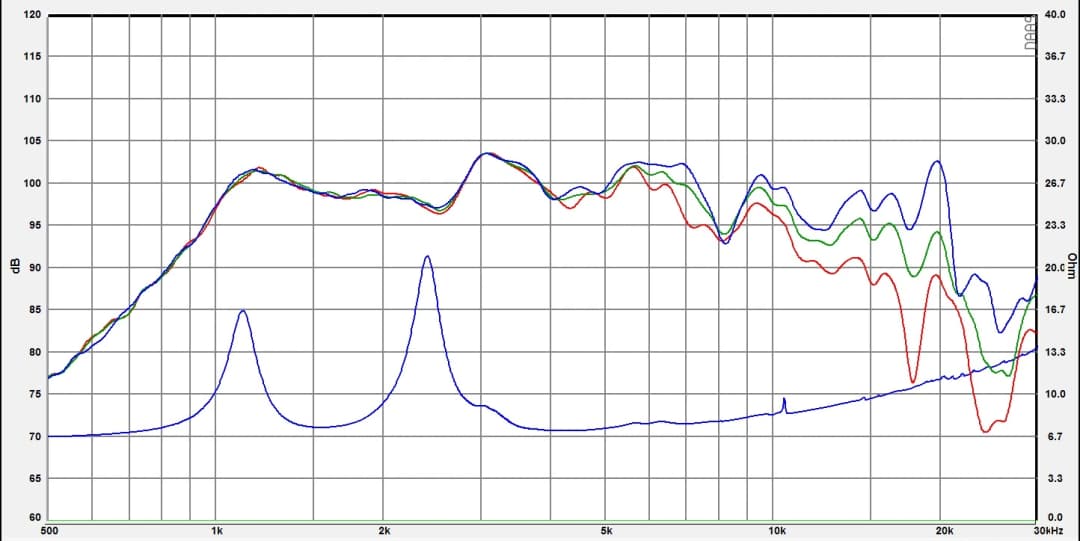

| Frequency Response | 1400 – 20000 Hz |
| Sensitivity | 98 dB |
| Magnetic flux density | 1.59 T |
| Magnet Weight | 0.63 kg |
| Speaker Weight | 1.74 kg |
| Voice Coil Diameter | 44.3 mm |
