Low Distortion and Efficient Driver Motor System
The driver motor structure is designed using a ferrite magnet and simulated with FEMM, resulting in an optimized motor that is low in distortion and more efficient at high frequencies.

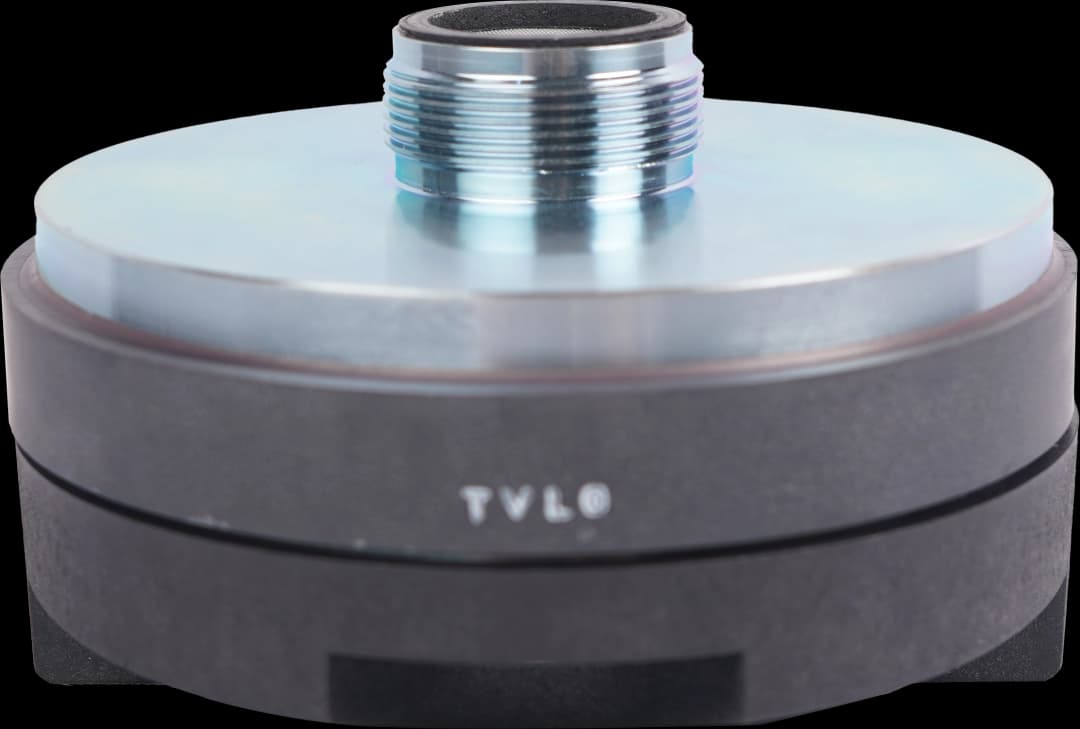

Screw-On System for Horn Applications
The screw-on system makes horn installation simpler and more convenient.
Ideal for Compact 2-Way System & Multi-Driver Line Array System
The 1.75-inch (44.4 mm) voice coil design with a 1-inch (25.4 mm) exit throat on the compression driver is very suitable and ideal for use in Compact 2-Way Systems and Multi-Driver Line Array Systems.
| Specifications | |
| Impedance | 8 Ω |
| Nominal Power Handling(1) | 40 W |
| Program Power(2) | 80 W |

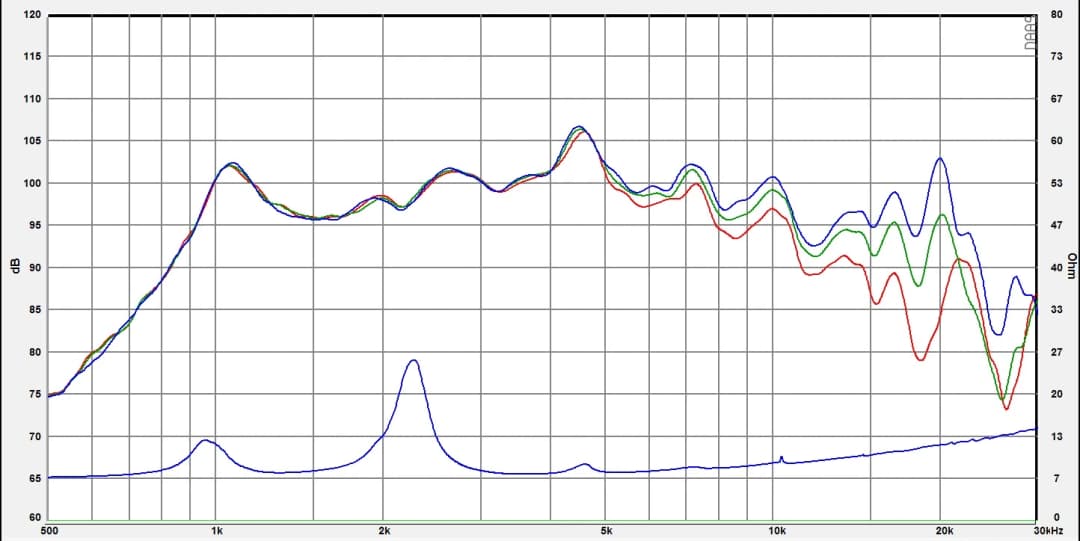

| Frequency Response | 1400 – 20000 Hz |
| Sensitivity | 98 dB |
| Magnetic flux density | 1.59 T |
| Magnet Weight | 0.63 kg |
| Speaker Weight | 1.74 kg |
| Voice Coil Diameter | 44.3 mm |
