Optimal Driver Motor System
The driver motor design uses a ferrite magnet with Ferrofluid, providing better heat resistance and more stability at high frequencies.

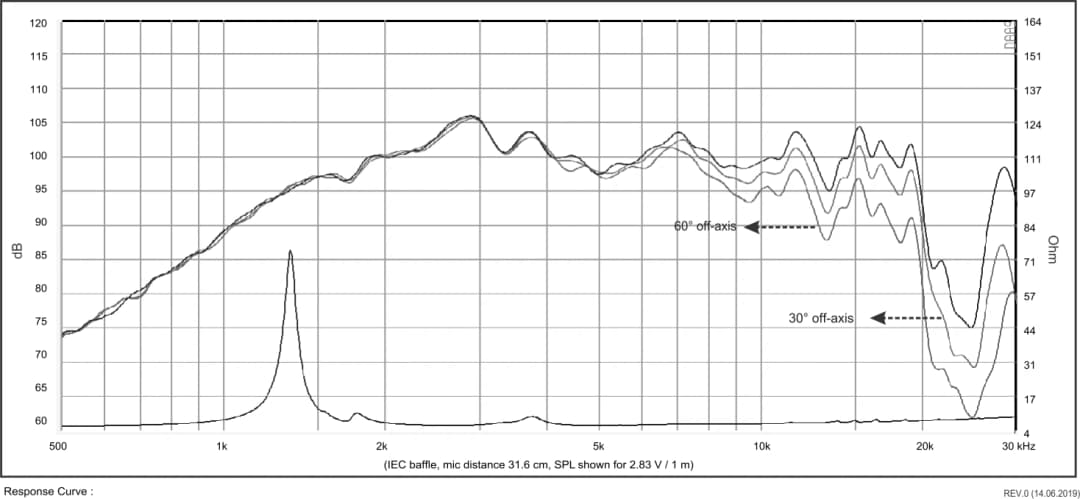

Wider and Flatter Frequency Response at High Frequencies
A specially designed chamber and phase plug, optimized through FEA simulation, deliver a wider frequency response range (2000 Hz – 20000 Hz) and a flat response at high frequencies.
Clear and Clean Sound Output
The specially designed compression driver dome, made from Polyetherimide (PEI) and using a Kapton former, produces clear and clean sound at high frequencies.
| Specifications | |
| Impedance | 8 Ω |
| Nominal Power Handling(1) | 20 W |
| Program Power(2) | 40 W |
| Frequency Response | 2000 - 20000 Hz |
| Sensitivity | 101 dB |
| Magnetic flux density | 1.7 T |
| Magnet Weight | 0.39 kg |
| Speaker Weight | 0.84 kg |
| Voice Coil Diameter | 25.4 mm |
