Compression Driver-
Tweeter
CD 250P1-08F (CD 10) ACR
Compression Driver - Tweeter
Features
Optimal Driver Motor System
The driver motor design uses a ferrite magnet with Ferrofluid, making it more heat-resistant and more stable at high frequencies.
Wider and Flatter Frequency Response at High Frequencies
A specially designed Phase Plug and Horn Adapter, optimized through FEM simulation, produce a wider frequency response range (2000 Hz – 20000 Hz) and a flat response at high frequencies.
Clear and Clean Sound Output
A specially designed compression driver dome made of Polyetherimide (PEI) and using a Kapton former delivers clear and clean sound at high frequencies.
Optimal Driver Motor System
The driver motor design uses a ferrite magnet with Ferrofluid, making it more heat-resistant and more stable at high frequencies.
Wider and Flatter Frequency Response at High Frequencies
A specially designed Phase Plug and Horn Adapter, optimized through FEM simulation, produce a wider frequency response range (2000 Hz – 20000 Hz) and a flat response at high frequencies.
Clear and Clean Sound Output
A specially designed compression driver dome made of Polyetherimide (PEI) and using a Kapton former delivers clear and clean sound at high frequencies.
| Specifications | |
| Impedance | 8 Ω |
| Nominal Power Handling(1) | 20 W |
| Program Power(2) | 40 W |

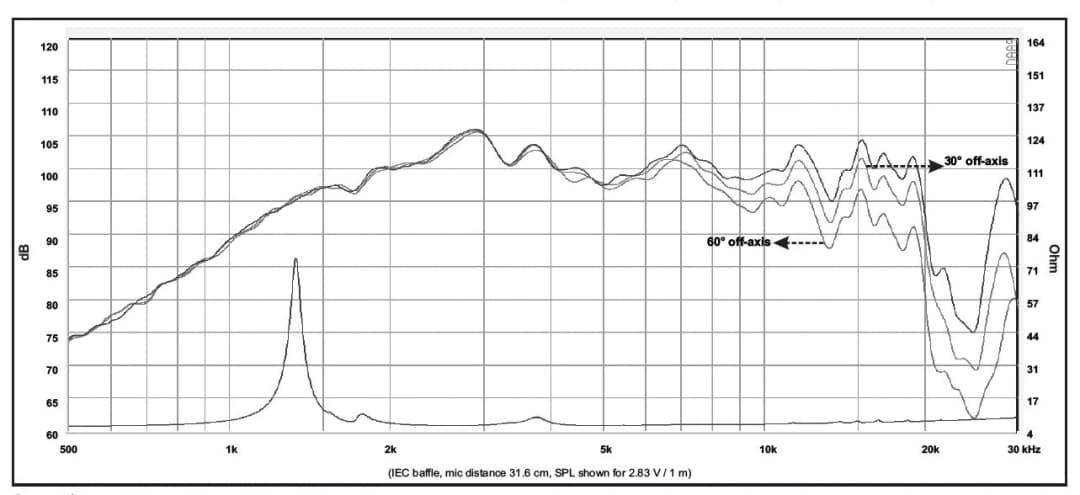

| Frequency Response | 2000 – 20000 Hz |
| Sensitivity | 101 dB |
| Magnetic flux density | 1.7 T |
| Magnet Weight | 0.39 kg |
| Speaker Weight | 0.84 kg |
| Voice Coil Diameter | 25.4 mm |
(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air
(2) Power on continous program is defined as 3dB greater than nominal power handling.
