Optimal Driver Motor System
The driver motor design uses a ferrite magnet with Ferrofluid, providing better heat resistance and more stability at high frequencies.
Improved and Flat High-Frequency Response

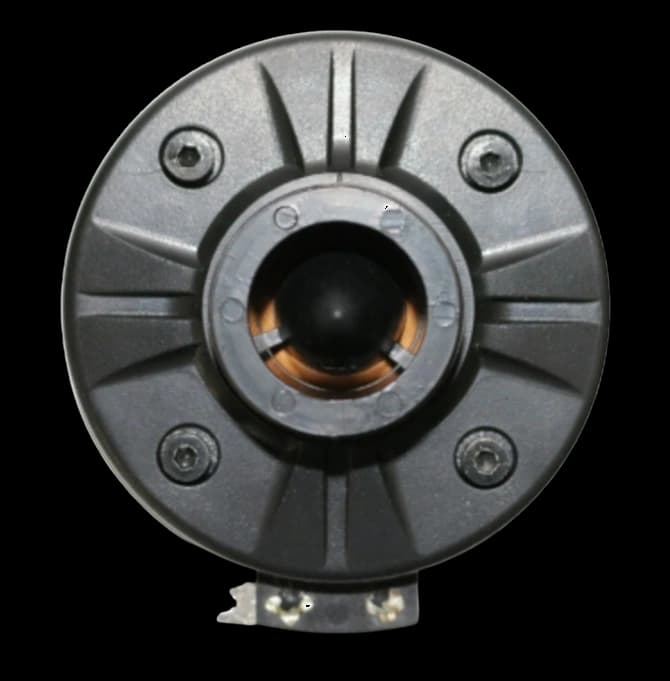

A specially designed Phase Plug and Horn Adapter, optimized through FEA simulation, deliver improved and flat frequency response at high frequencies.
Exceptional Sound Output
A specially designed dome made from cloth and using a Newcon former produces excellent and outstanding sound output.
| Specifications | |
| Impedance | 8 Ω |
| Nominal Power Handling(1) | 20 W |
| Program Power(2) | 40 W |
| Frequency Response | 3000 – 20000 Hz |
| Sensitivity | 97 dB |
| Magnetic flux density | 1.45 T |
| Magnet Weight | 0.27 kg |
| Speaker Weight | 0.66 kg |
| Voice Coil Diameter | 25.4 mm |
