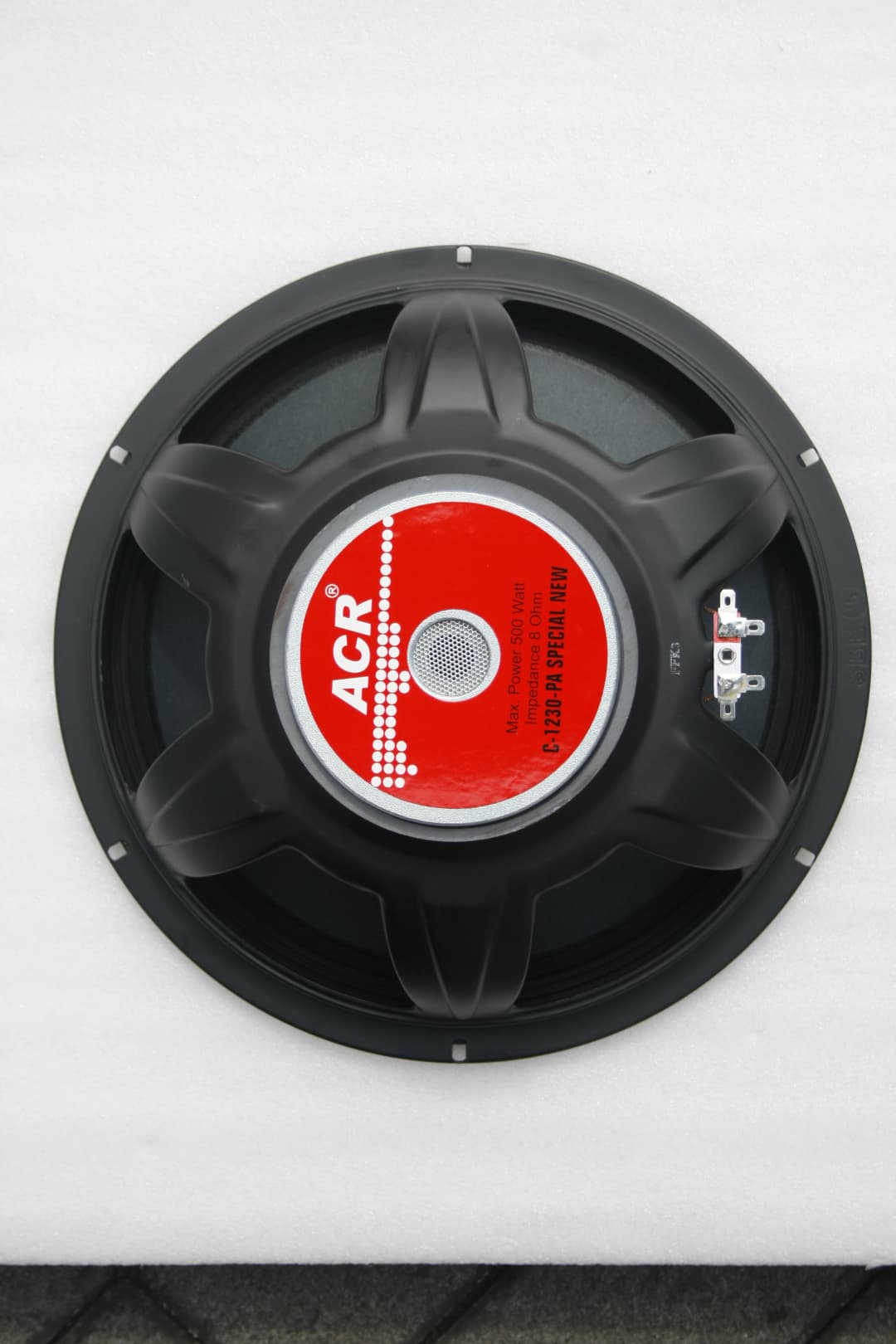

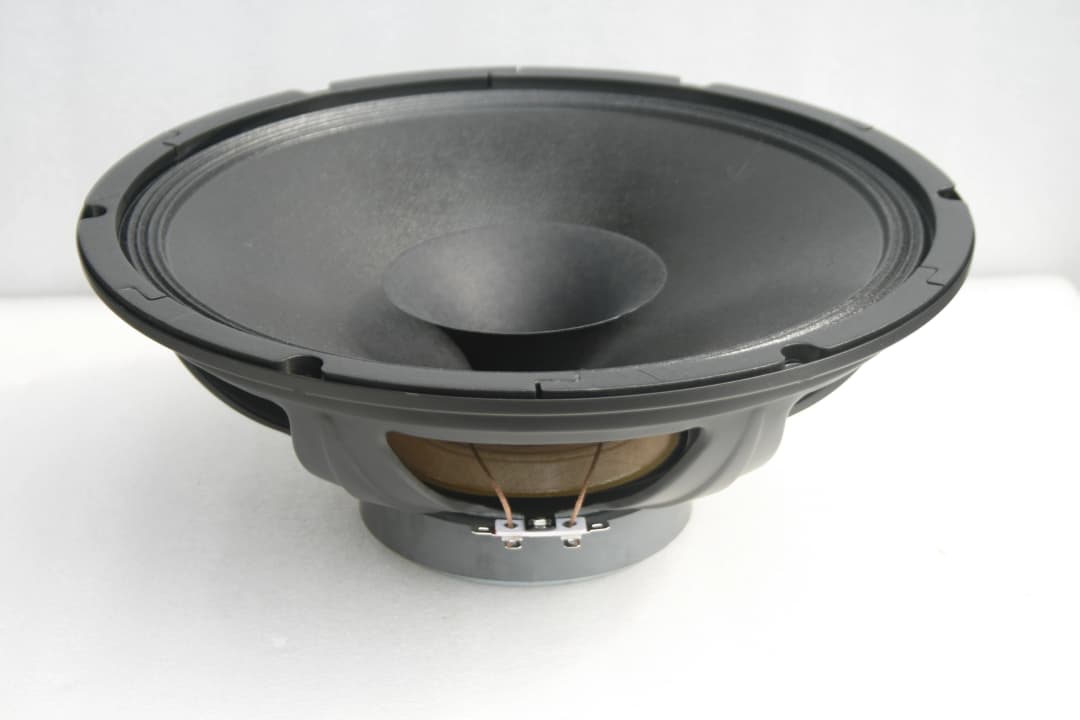

12" C-1230-PA Mk2 SPECIAL NEW

Specifications
Speaker Diameter	12 inch
Impedance	8 Ω
Nominal Power Handling⁽¹⁾	150 W
Program Power⁽²⁾	300 W

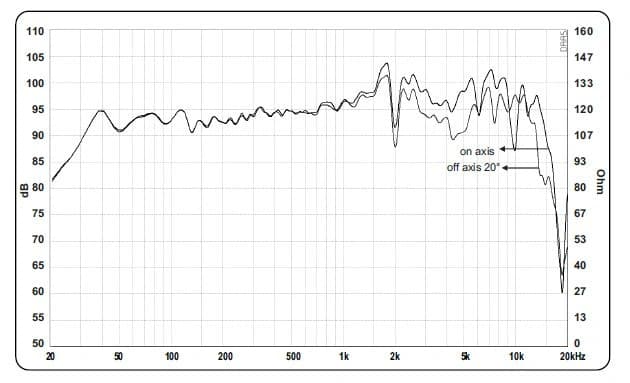

Frequency Response	45 - 17000 Hz
Sensitivity	95 dB
Magnetic flux density	1.01 T
Magnet Weight	0.79 kg
Voice Coil Diameter	36 mm
Voice Coil Material	Kapton

Thiele-Small Parameters
Fs	41 Hz
DCR	6.4 Ω
Qts	0.74
Qes	0.83
Qms	7.03
Mms	49.2 g
Cms	0.3 mm/N
BL Product	9.9 Tm
Vas	116.2 litres
No	0.95 %
Sd	522.8 cm²
Xmax	5.3 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
