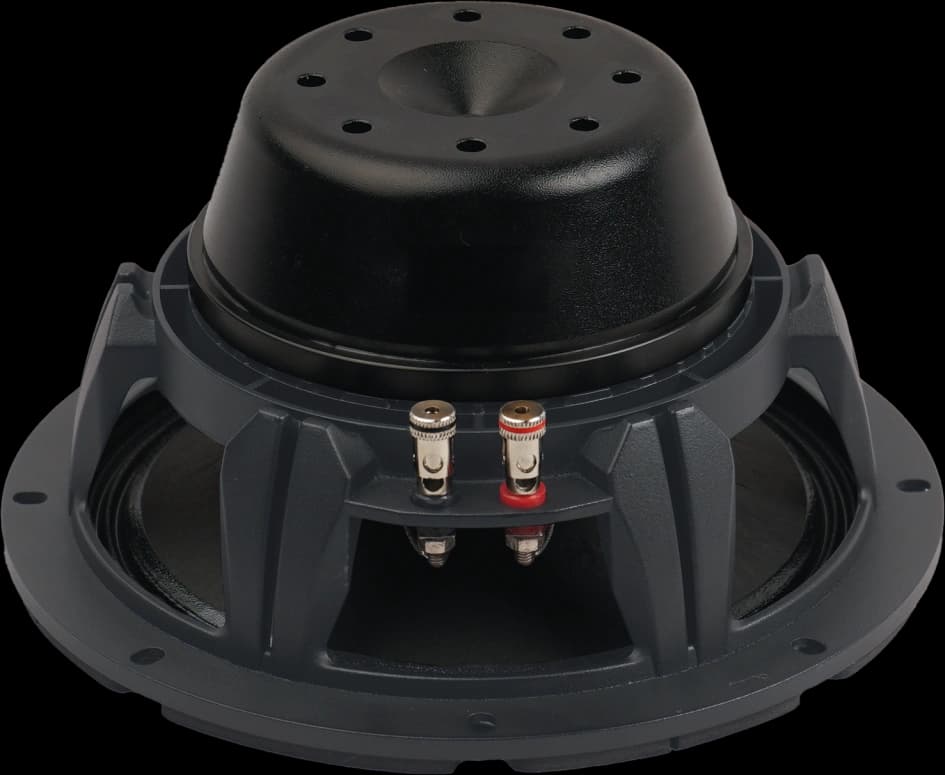

Rugged Chassis Design
The chassis is made from durable die-cast aluminum and is equipped with a heat sink and ventilation system to efficiently dissipate heat.
Weather Resistant
The cone paper is made from specially processed paper using a rigid non-press manufacturing method and coated with a weather-resistant layer, making the speaker suitable for both indoor and outdoor applications.
Low Distortion
A copper cap/aluminum ring is added to the head yoke to minimize speaker distortion and improve high-frequency SPL, delivering clear, high-quality sound for both indoor and outdoor use.
Maximum Power Handling
The voice coil winding is coated with a special heat-resistant material, allowing the speaker to withstand high temperatures and deliver reliable performance under high power handling conditions.
| Specifications | |
| Speaker Diameter | 8 inch |

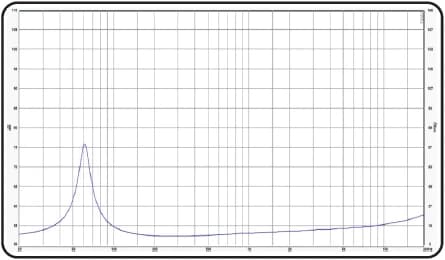

| Impedance | 8 Ω |
| Nominal Power Handling(1) | 400 W |
| Program Power(2) | 800 W |

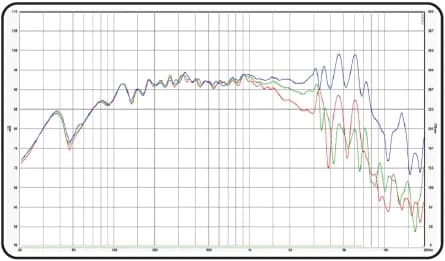

| Frequency Response | 65 - 7800 Hz |
| Sensitivity | 93 dB |
| Effective Cone Diameter | 163 mm |
| Magnetic flux density | 0.85 T |
| Magnet Weight | 1.31 kg |
| Speaker Weight | 3 kg |
| Voice Coil Diameter | 60.55 mm |
| Voice Coil Material | TILL |
| Magnet Material | Neodymium |
| Thiele-Small Parameters | |
| Fs | 62 Hz |
| DCR | 5.2 Ω |
| Qts | 0.36 |
| Qes | 0.39 |
| Qms | 4.61 |
| Mms | 27.1 g |
| Cms | 0.25 mm/N |
| BL Product | 11.8 Tm |
| Vas | 15.4 litres |
| No | 0.86 % |
| Sd | 208.7 cm² |
| Xmax | 6.67 mm |
