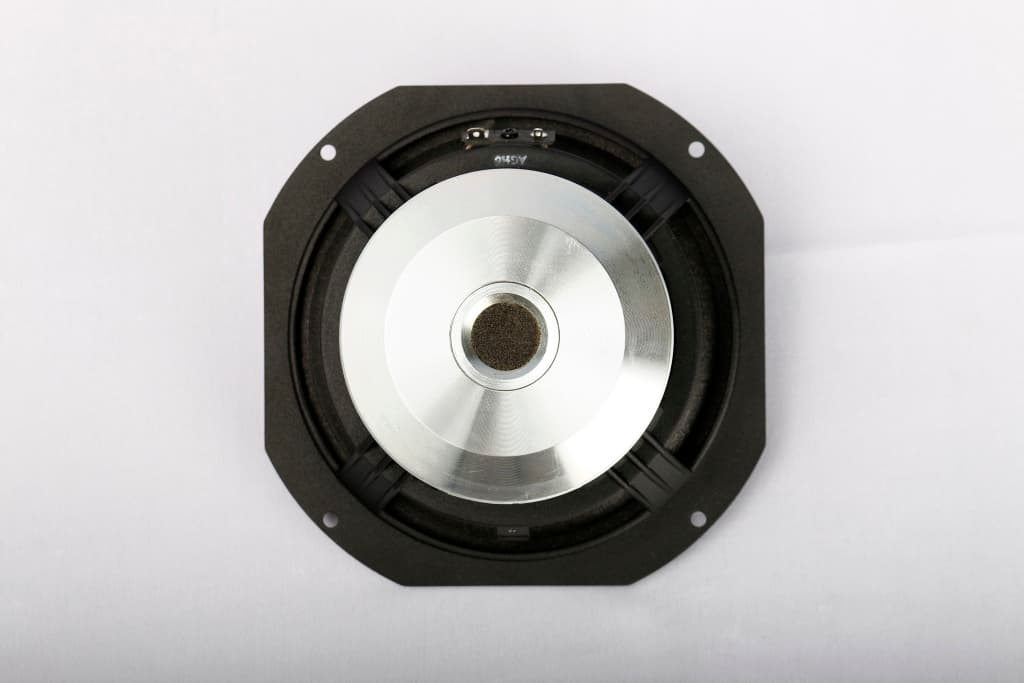

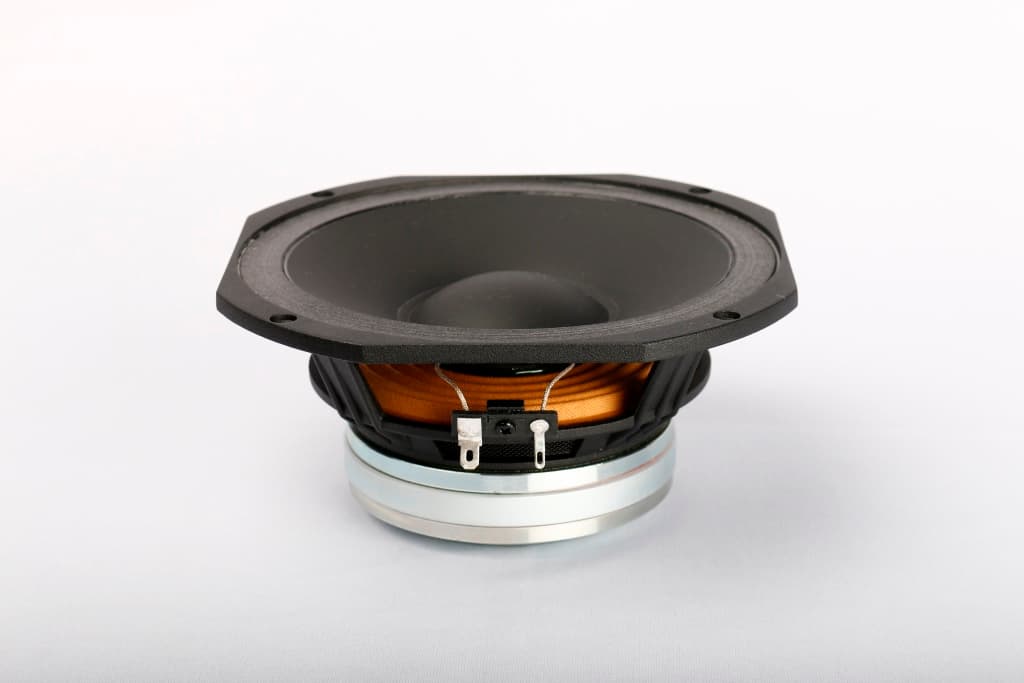

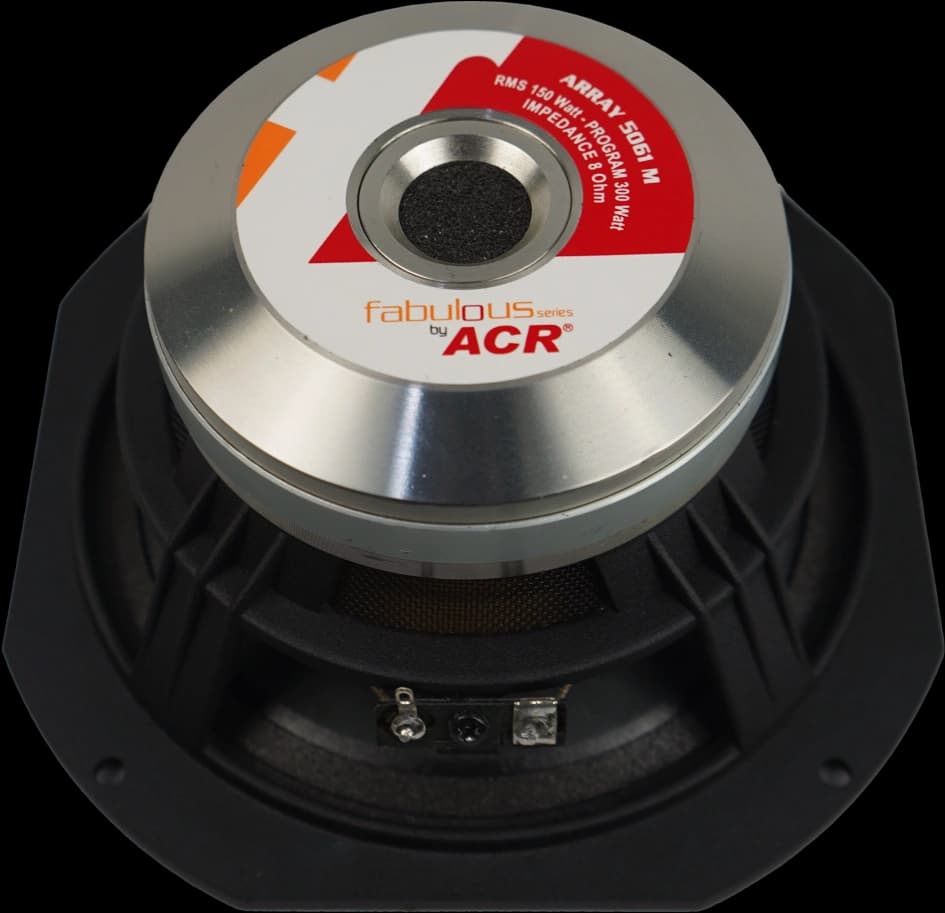

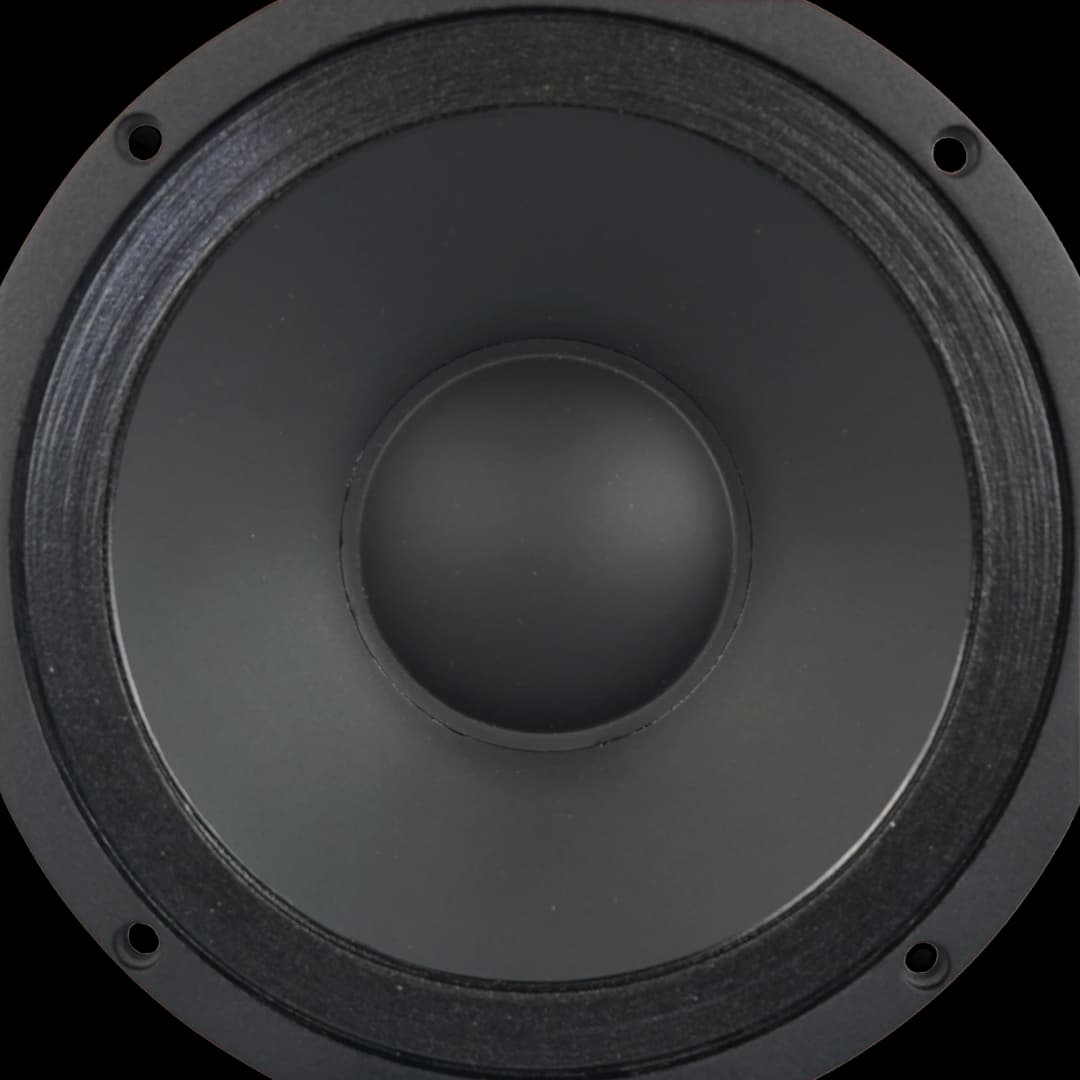

6" ARRAY 5061 M FAB BY ACR

Features

Optimized and Heat-Resistant Magnet Power
The use of high-temperature-resistant neodymium magnet material, combined with FEA (Finite Element Analysis) simulations, results in an optimally designed and thermally stable magnet system.
Low Distortion
An added aluminum ring module significantly reduces distortion, delivering cleaner and more accurate sound output

Specifications
Speaker Diameter	6 inch
Impedance	8 Ω
Nominal Power Handling⁽¹⁾	150 W
Program Power⁽²⁾	300 W

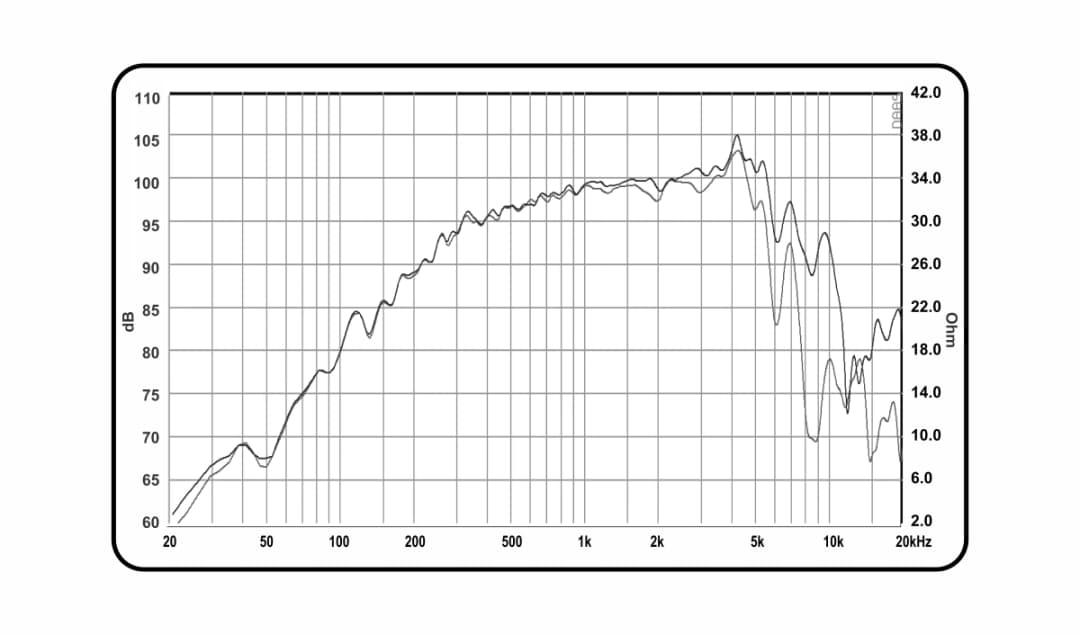

Frequency Response	231 - 10700 Hz
Sensitivity	97 dB
Magnetic flux density	1.78 T
Magnet Weight	0.25 kg
Voice Coil Diameter	49.5 mm
Voice Coil Material	Till

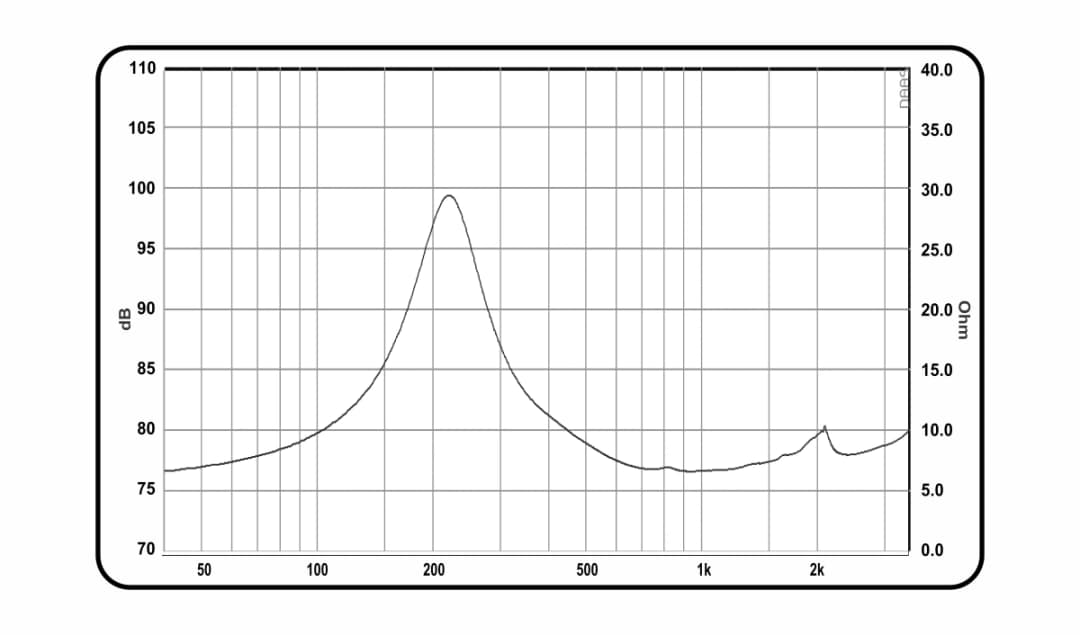

Thiele-Small Parameters
Fs	222.3 Hz
DCR	5.6 Ω
Qts	0.48
Qes	0.57
Qms	3.31
Mms	12.6 g
Cms	0.04 mm/N
BL Product	13.2 Tm
Vas	1.1 litres
No	1.99 %
Sd	136.8 cm²
Xmax	3.2 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
