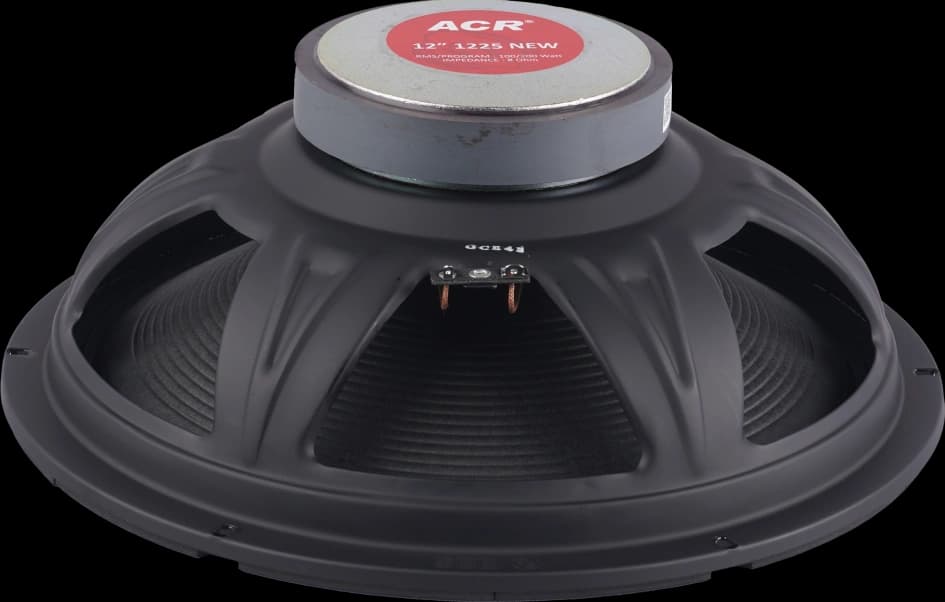

12" ACR 1225 NEW

Features

Optimized Magnet Power
The motor is designed using FEA (Finite Element Analysis) measurements to achieve optimal magnetic power.
Wide Bandwidth Frequency Response

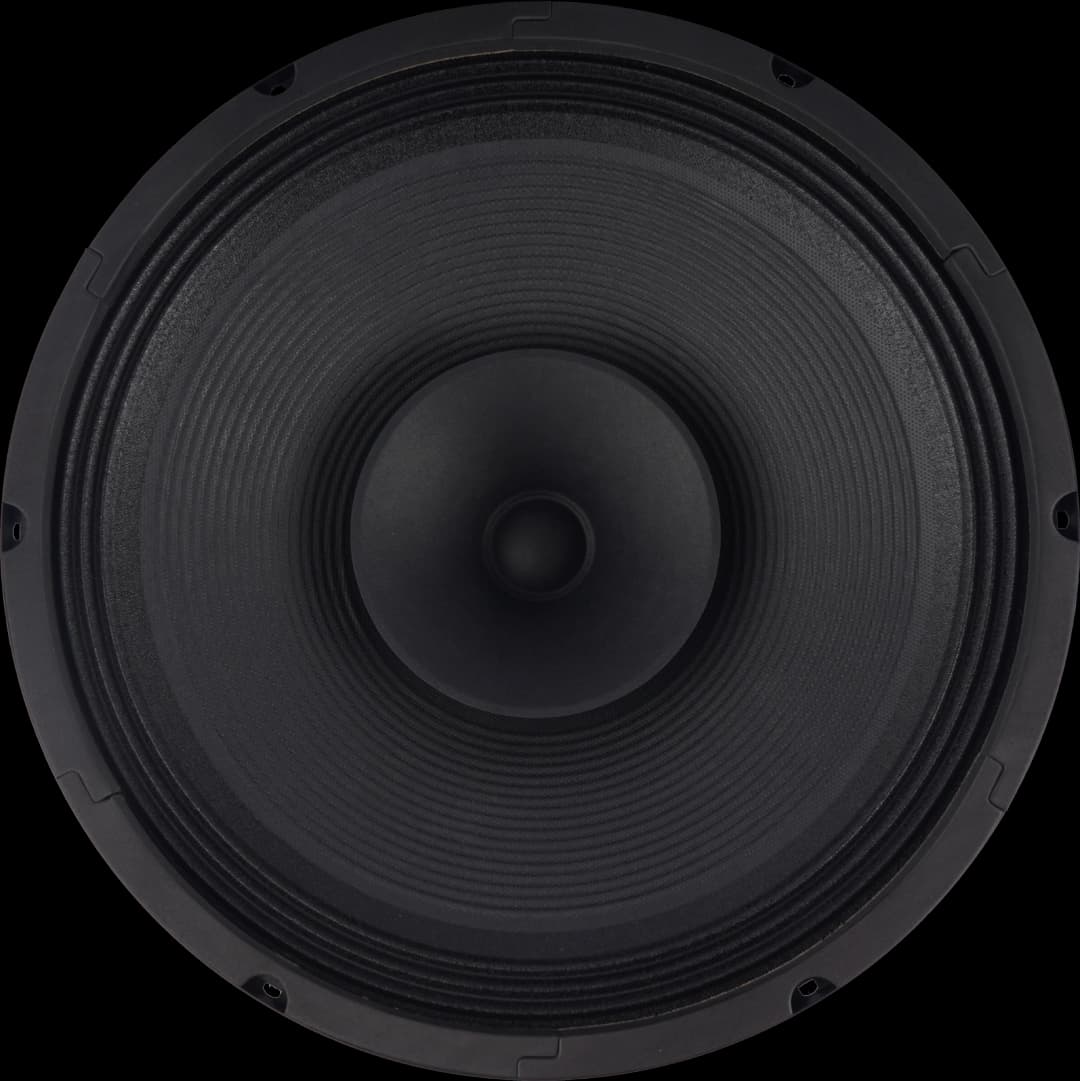

The speaker design features a "whizzer cone," providing a wide operating frequency range, making it ideal for full-range speaker applications.

Specifications
Speaker Diameter	12 inch
Impedance	8 Ω
Nominal Power Handling⁽¹⁾	100 W
Program Power⁽²⁾	200 W

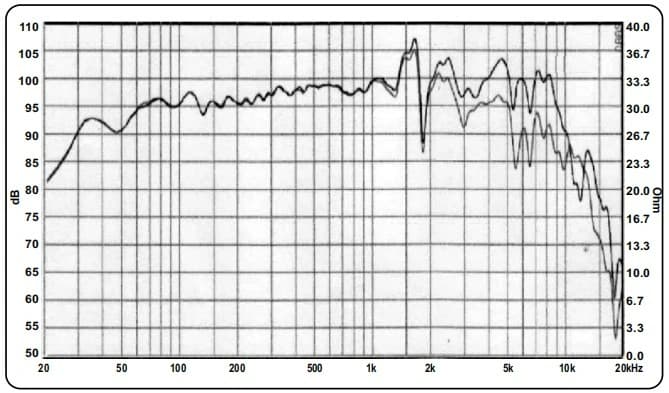

Frequency Response	47 - 11100 Hz
Sensitivity	93 dB
Magnetic flux density	1.23 T
Magnet Weight	0.81 kg
Voice Coil Diameter	35.5 mm
Voice Coil Material	ASV

Thiele-Small Parameters
Fs	52 Hz
DCR	5.4 Ω
Qts	0.82
Qes	1.03
Qms	1.03
Mms	35 g
Cms	0.26 mm/N
BL Product	7.8 Tm
Vas	103.6 litres
No	1.41 %
Sd	538.9 cm²
Xmax	3.13 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
