Weatherproof Conepaper
The conepaper is crafted from specially selected materials to ensure durability and deliver excellent sound quality. It is coated with a weatherproof layer, making it ideal for both indoor and outdoor applications.
Optimized Magnet Power
The motor is designed using Finite Element Analysis (FEA), resulting in optimal magnetic force for improved speaker performance.
Wide Bandwidth Frequency Response
Specially engineered speaker design delivers a wide working frequency range from 52 Hz to 11,700 Hz, ensuring clear and dynamic sound reproduction.
Efficient Airflow and Compression Control
Ventilation on the inner diameter of the cone provides effective airflow, reducing air compression during operation and helping the speaker stay cool and stable.
| Specifications | |
| Speaker Diameter | 6 inch |

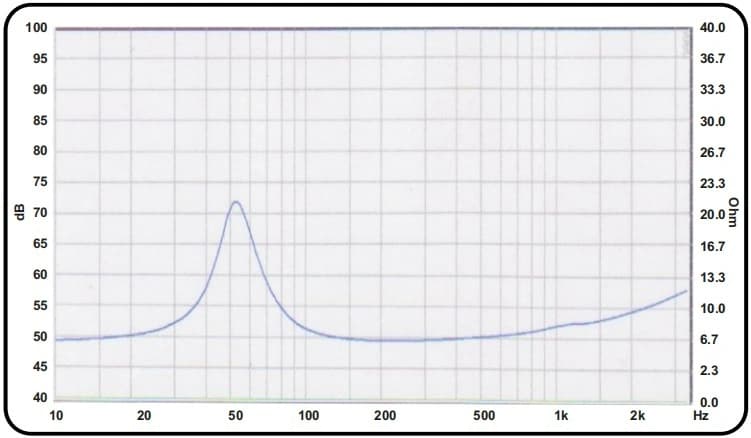

| Impedance | 6 Ω |
| Nominal Power Handling | 20 W |
| Program Power | 40 W |

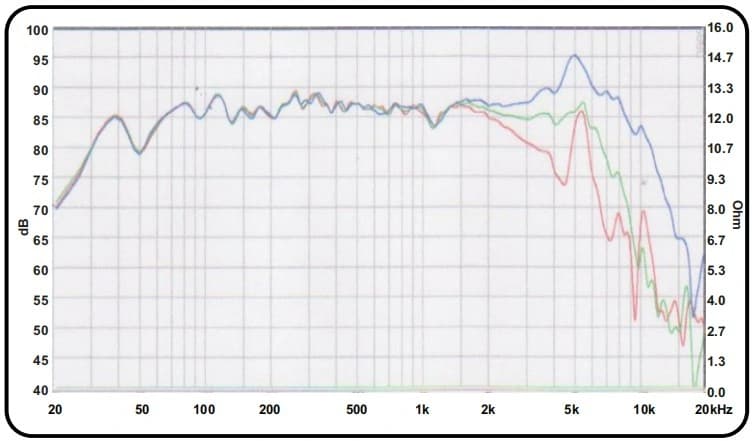

| Frequency Response | 52 – 11700 Hz |
| Sensitivity | 87 dB |
| Magnetic flux density | 1.1 T |
| Magnet Weight | 0.27 kg |
| Voice Coil Diameter | 25.4 mm |
| Voice Coil Material | ASV |
| Thiele-Small Parameters | |
| Fs | 52 Hz |
| DCR | 5.6 Ω |
| Qts | 0.69 |
| Qes | 0.94 |
| Qms | 2.65 |
| Mms | 9.8 g |
| Cms | 0.97 mm/N |
| BL Product | 4.3 Tm |
| Vas | 24 litres |
| No | 0.34 % |
| Sd | 132.7 cm² |
| Xmax | 4.5 mm |
