Full Range

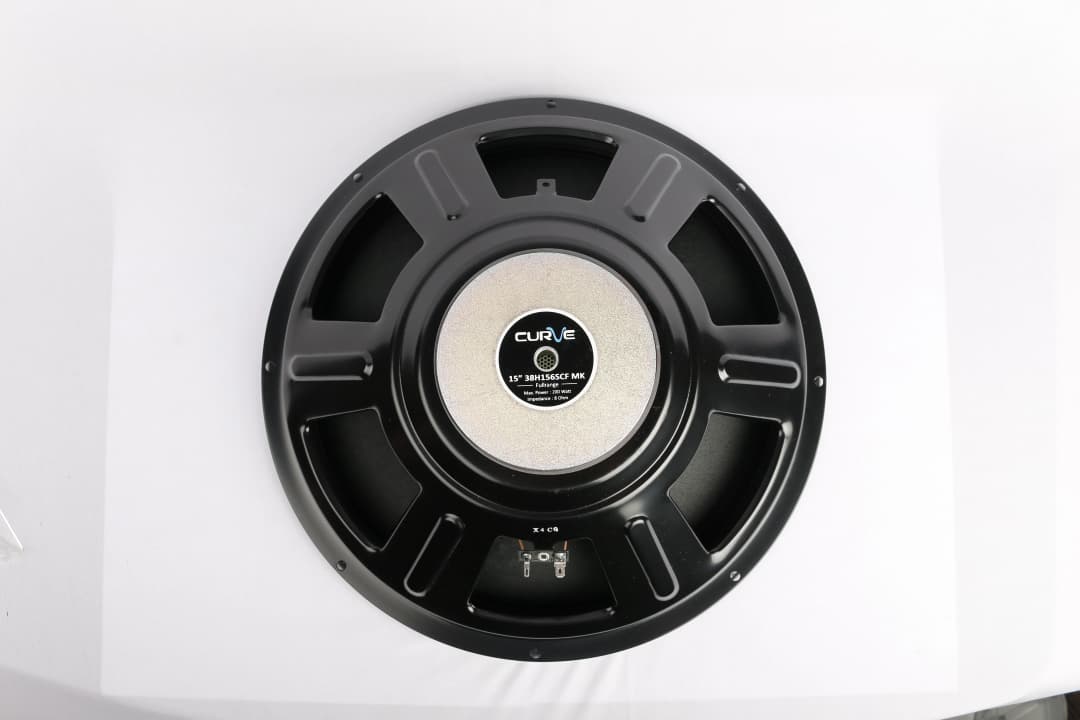

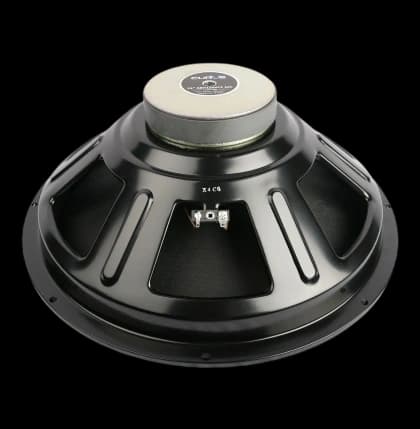

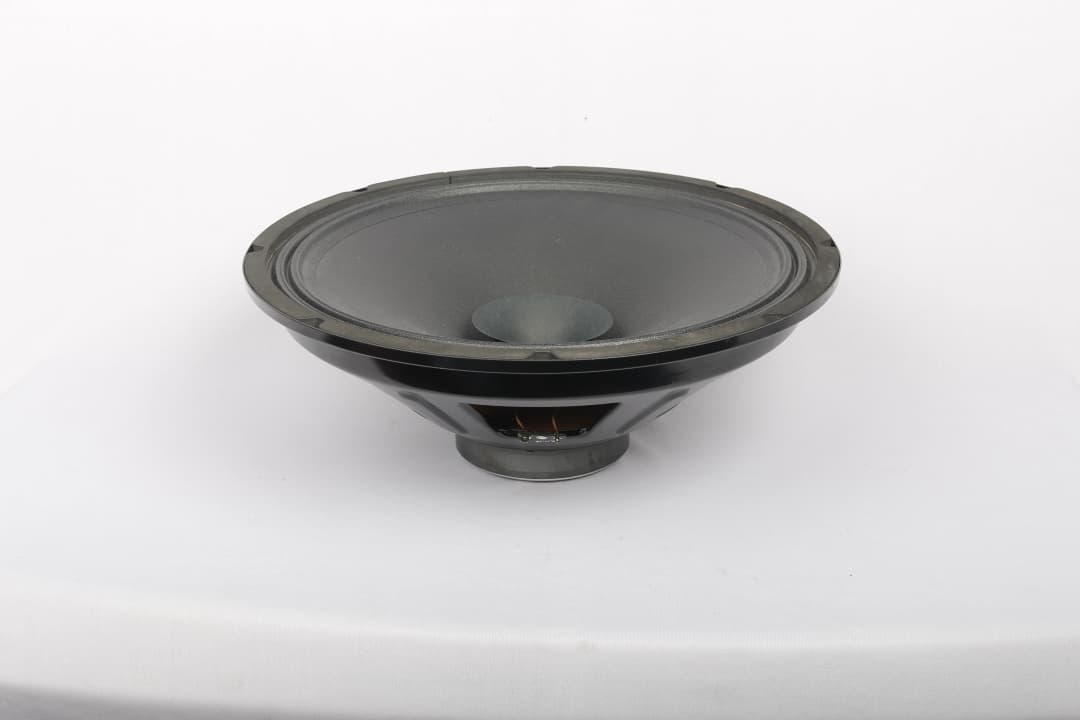

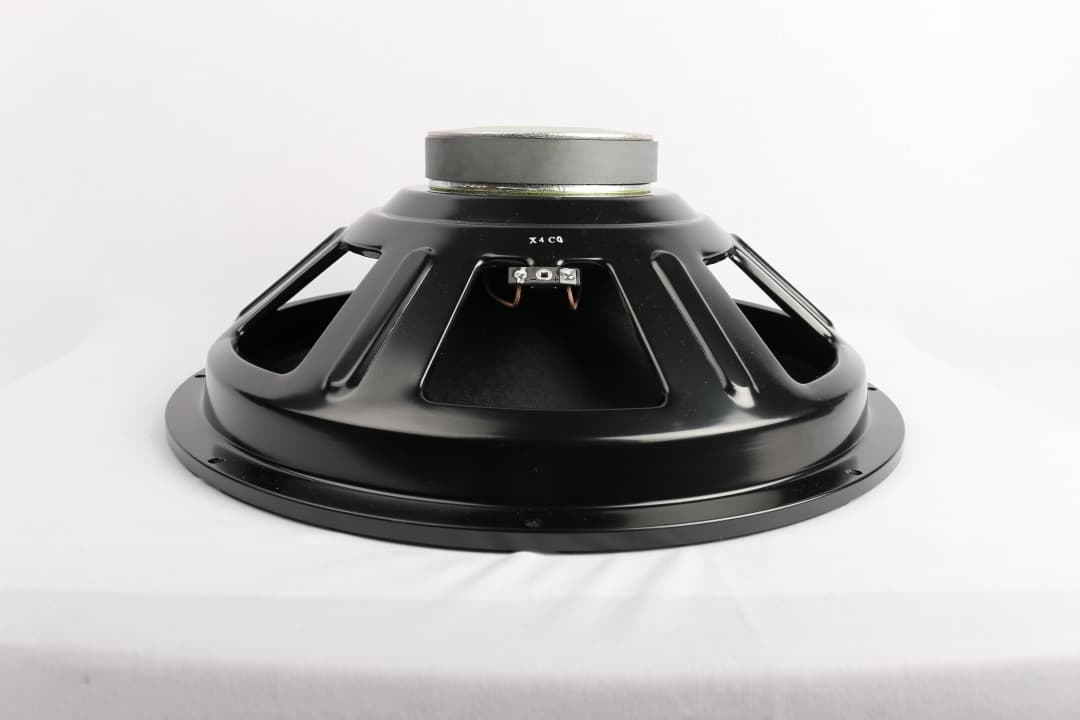

15" 38H156SCF-MK CURVE
Full Range
Features
Optimal Magnetic Power
The motor is designed using FEA (Finite Element Analysis), resulting in optimal magnetic performance.
Weatherproof Conepaper
The conepaper is coated with a weatherproof layer, making it suitable for both indoor and outdoor use.
Wide Bandwidth Frequency Response
The speaker is equipped with a whizzer cone, providing a wide frequency range and making it ideal for full-range speaker applications.
Low Compression
The motor is designed with special ventilation to eliminate air compression and ensure airflow that functions as an effective cooling system.
Optimal Magnetic Power
The motor is designed using FEA (Finite Element Analysis), resulting in optimal magnetic performance.
Weatherproof Conepaper
The conepaper is coated with a weatherproof layer, making it suitable for both indoor and outdoor use.
Wide Bandwidth Frequency Response
The speaker is equipped with a whizzer cone, providing a wide frequency range and making it ideal for full-range speaker applications.
Low Compression
The motor is designed with special ventilation to eliminate air compression and ensure airflow that functions as an effective cooling system.
| Specifications | |
| Speaker Diameter | 15 inch |

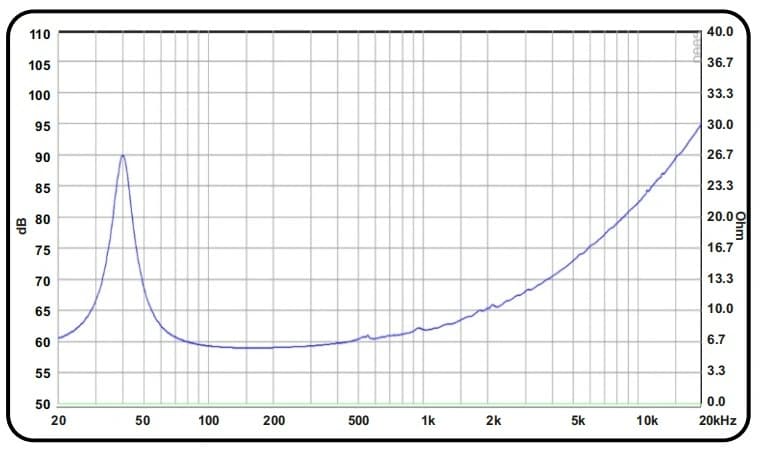

| Impedance | 8 Ω |
| Nominal Power Handling(1) | 100 W |
| Program Power(2) | 200 W |

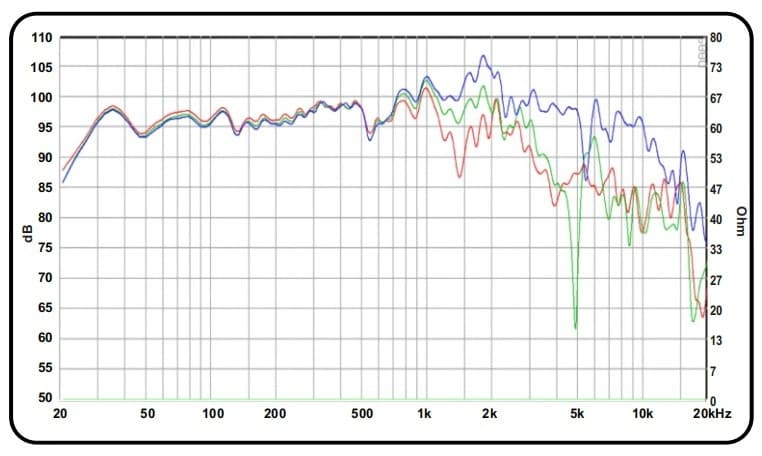

| Frequency Response | 40 – 12800 Hz |
| Sensitivity | 97 dB |
| Magnetic flux density | 1.34 T |
| Magnet Weight | 0.89 kg |
| Speaker Weight | 2.85 kg |
| Voice Coil Diameter | 38.56 mm |
| Voice Coil Material | ASV |
| Thiele-Small Parameters | |
| Fs | 40 Hz |
| DCR | 5.4 Ω |
| Qts | 0.75 |
| Qes | 0.85 |
| Qms | 6.07 |
| Mms | 71.3 g |
| Cms | 0.22 mm/N |
| BL Product | 10.7 Tm |
| Vas | 226 litres |
| No | 1.71 % |
| Sd | 865.7 cm² |
| Xmax | 3.7 mm |
(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air
(2) Power on continous program is defined as 3dB greater than nominal power handling.
