Optimal Magnetic Power
The speaker’s magnetic motor delivers optimal power, thanks to a design developed using FEA (Finite Element Analysis) technology.
Weatherproof Conepaper
The conepaper is made from a base of 100% UKP SR 18° and KPK (Kapok fiber), processed using a rigid non-press method and coated with a weatherproof layer—making it durable in all weather conditions and capable of producing better sound quality.
Low Compression
The motor and chassis are designed with special ventilation to eliminate air compression and ensure proper airflow for effective cooling.
Maximum Power Handling
The voice coil wire is made from EISVW material, and the winding is coated with a special layer, allowing the voice coil to withstand high temperatures. This ensures the speaker can perform reliably under high power handling conditions.
Special Chassis Design
The highly durable chassis is made from quality die-cast material and features a specially designed bottom section for efficient heat dissipation.
| Specifications | |
| Speaker Diameter | 15 inch |
| Impedance | 8 Ω |
| Nominal Power Handling(1) | 600 W |
| Program Power(2) | 1200 W |

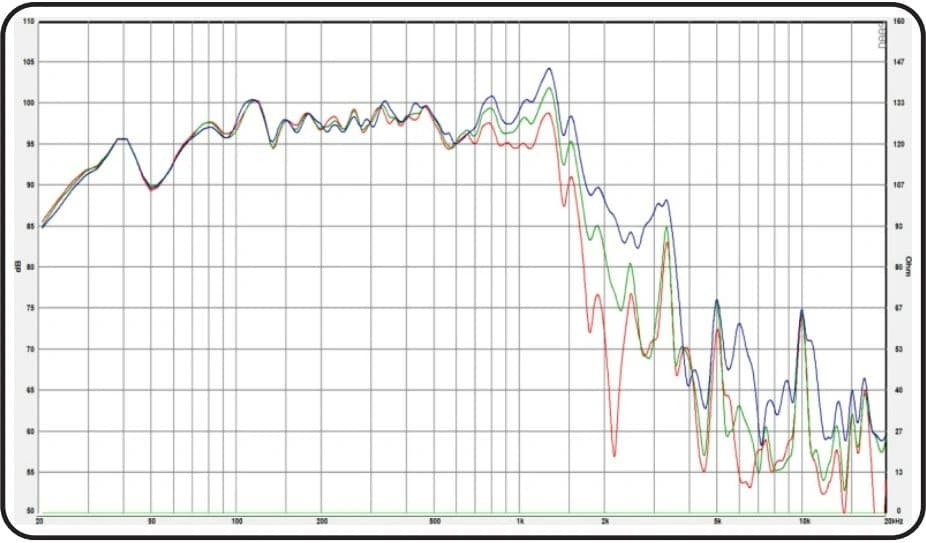

| Frequency Response | 35 – 1700 Hz |
| Sensitivity | 98 dB |
| Magnetic flux density | 0.95 T |
| Magnet Weight | 2.56 kg |
| Voice Coil Diameter | 99.2 mm |
| Voice Coil Material | Till |
| Thiele-Small Parameters | |
| Fs | 33 Hz |
| DCR | 5.6 Ω |
| Qts | 0.3 |
| Qes | 0.31 |
| Qms | 12.38 |
| Mms | 118.2 g |
| Cms | 0.2 mm/N |
| BL Product | 21.1 Tm |
| Vas | 196.8 litres |
| No | 2.21 % |
| Sd | 845 cm² |
| Xmax | 9.21 mm |
