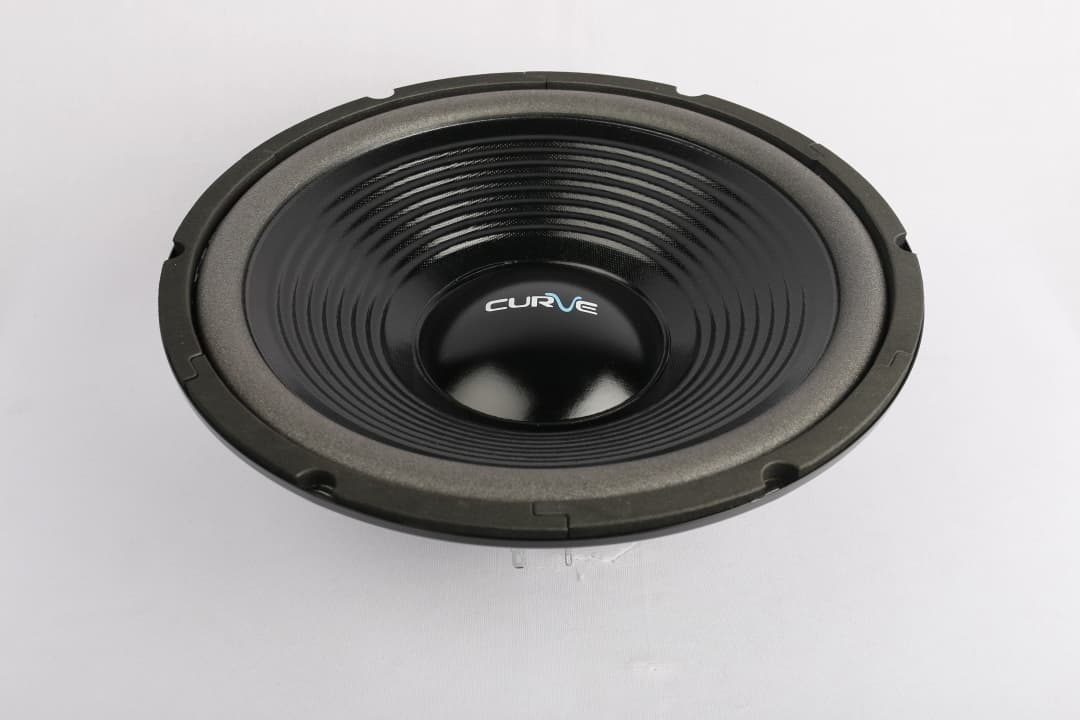

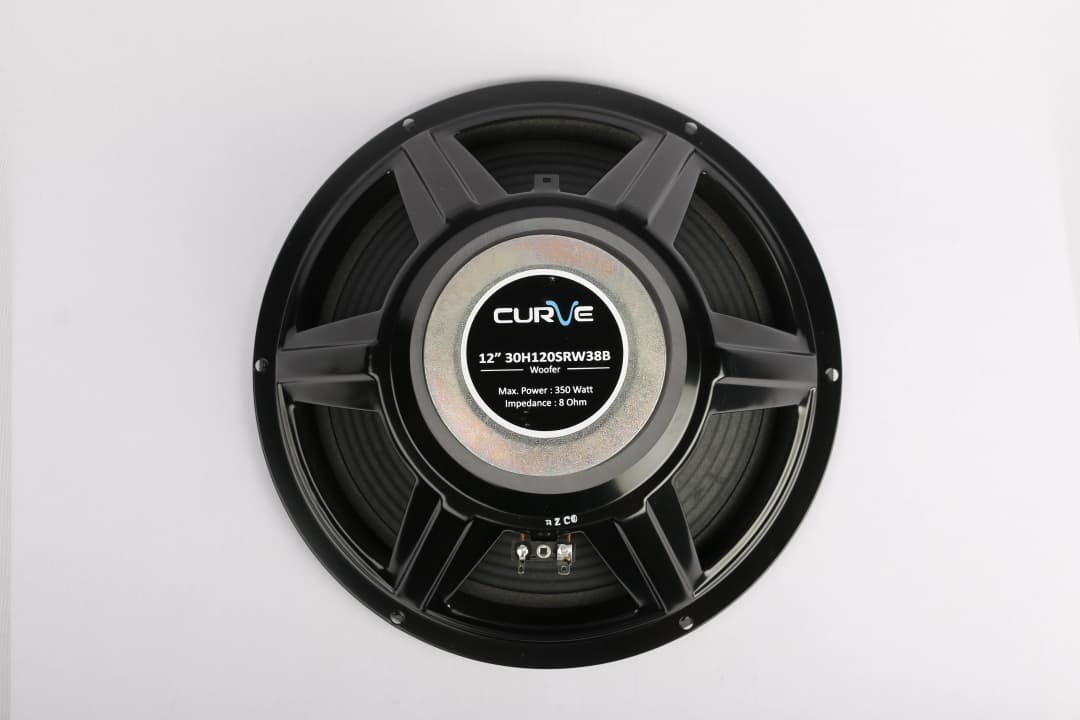

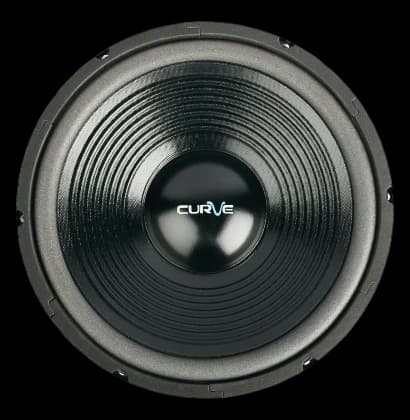

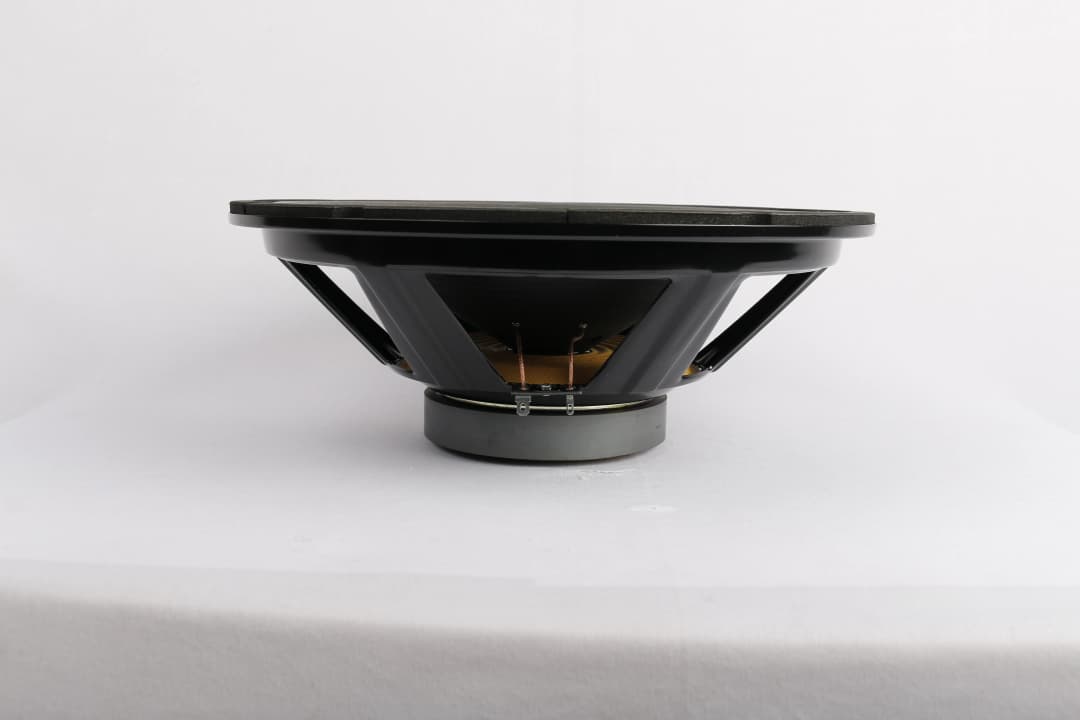

12" 30H120SRW38B CURVE (PLS)
Woofer - Midbass
Features
Optimal Magnetic Power
The motor is designed using FEA (Finite Element Analysis) measurements to deliver optimal magnetic performance.
Weatherproof Conepaper
The conepaper is coated with a weatherproof layer, making it suitable for both indoor and outdoor use.
Optimal Magnetic Power
The motor is designed using FEA (Finite Element Analysis) measurements to deliver optimal magnetic performance.
Weatherproof Conepaper
The conepaper is coated with a weatherproof layer, making it suitable for both indoor and outdoor use.
| Specifications | |
| Speaker Diameter | 12 inch |
| Impedance | 8 Ω |
| Frequency Response | 32 – 4800 Hz |
| Sensitivity | 94 dB |
| Magnetic flux density | 1.18 T |
| Magnet Weight | 0.71 kg |
| Voice Coil Diameter | 1.82 mm |
| Voice Coil Material | ASV |
| Maximum Power | 350 W |
| Thiele-Small Parameters | |
| Fs | 32 Hz |
| DCR | 6.5 Ω |
| Qts | 0.9 |
| Qes | 1.14 |
| Qms | 4.16 |
| Mms | 42.8 g |
| Cms | 0.57 mm/N |
| BL Product | 7 Tm |
| Vas | 223.4 litres |
| No | 0.62 % |
| Sd | 526.9 cm² |
| Xmax | 5.3 mm |
- IEC 268-5, (in box system, cut.off 20-500 Hz)
