15" 1590 ACR BLACK MAGIC

Features

Voice Coil uses lightweight Copper Clad Aluminum wire, resulting in high SPL and clear sound. The former is made of Till material, known for its excellent heat resistance and high power handling.
Conepaper features a Triple Roll Cloth surround to produce more dynamic sound with adequate cone excursion.
Chassis is made from highly durable aluminum die-cast material to support stable sound performance.
Controlled Air Compression is achieved through ventilation holes in the driver, ensuring better airflow regulation.

Specifications
Speaker Diameter	15 inch

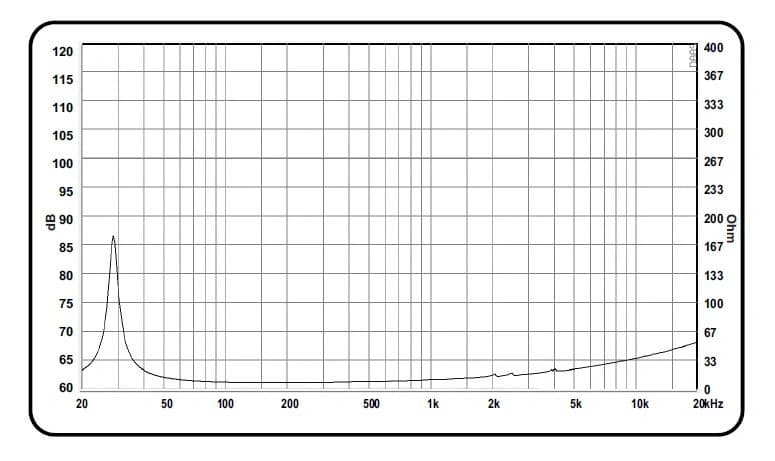

Impedance	8 Ω
Nominal Power Handling⁽¹⁾	300 W
Program Power⁽²⁾	600 W

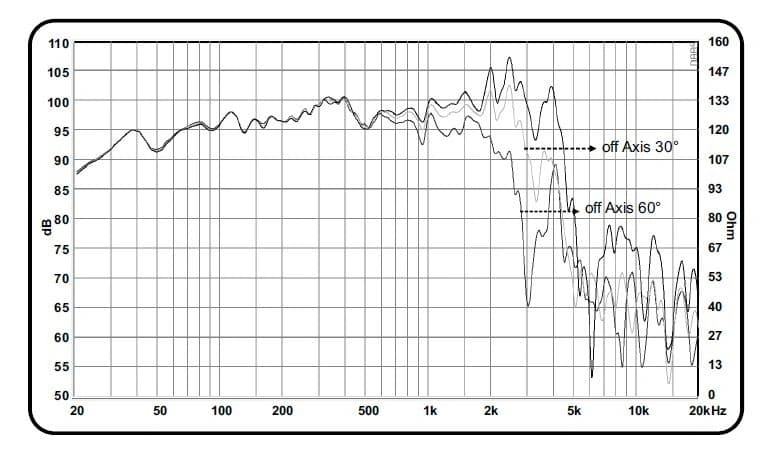

Frequency Response	28 - 4600 Hz
Sensitivity	98 dB
Magnetic flux density	1.18 T
Magnet Weight	1.8 kg
Voice Coil Diameter	75.55 mm
Voice Coil Material	Till

Thiele-Small Parameters
Fs	28 Hz
DCR	6.8 Ω
Qts	0.4
Qes	0.42
Qms	7.79
Mms	97.3 g
Cms	0.34 mm/N
BL Product	16.5 Tm
Vas	336 litres
No	1.61 %
Sd	834.7 cm²
Xmax	5 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
