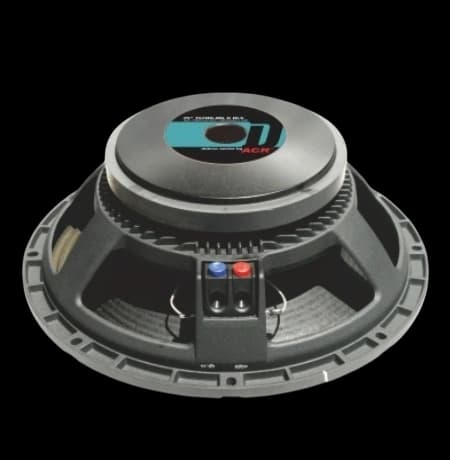

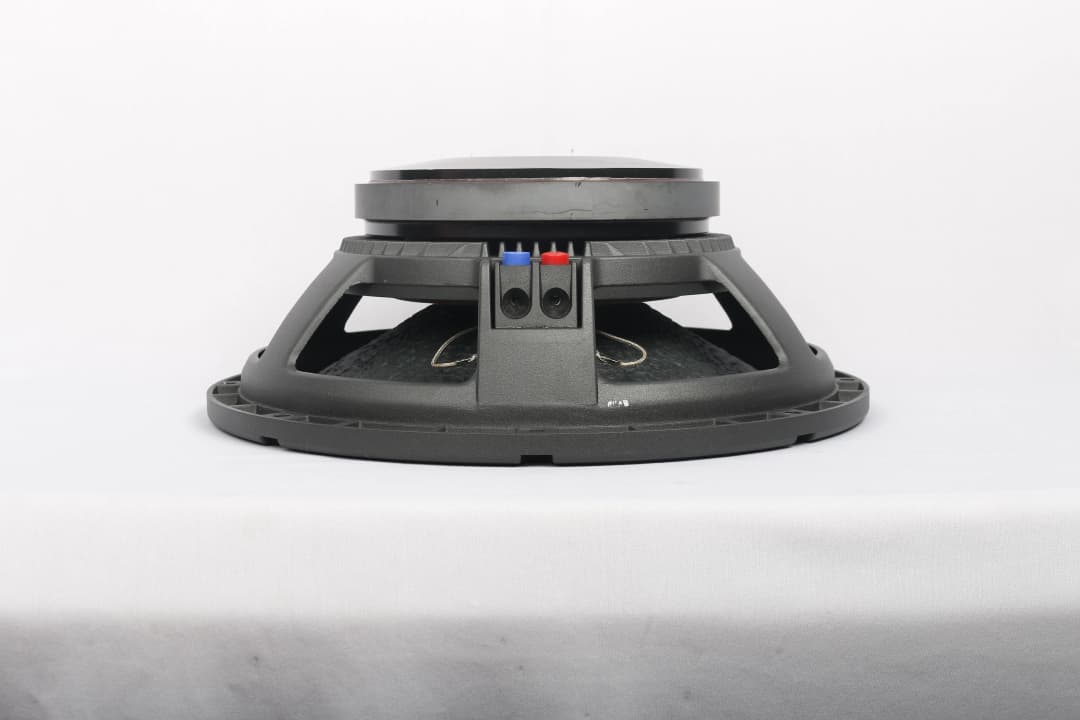

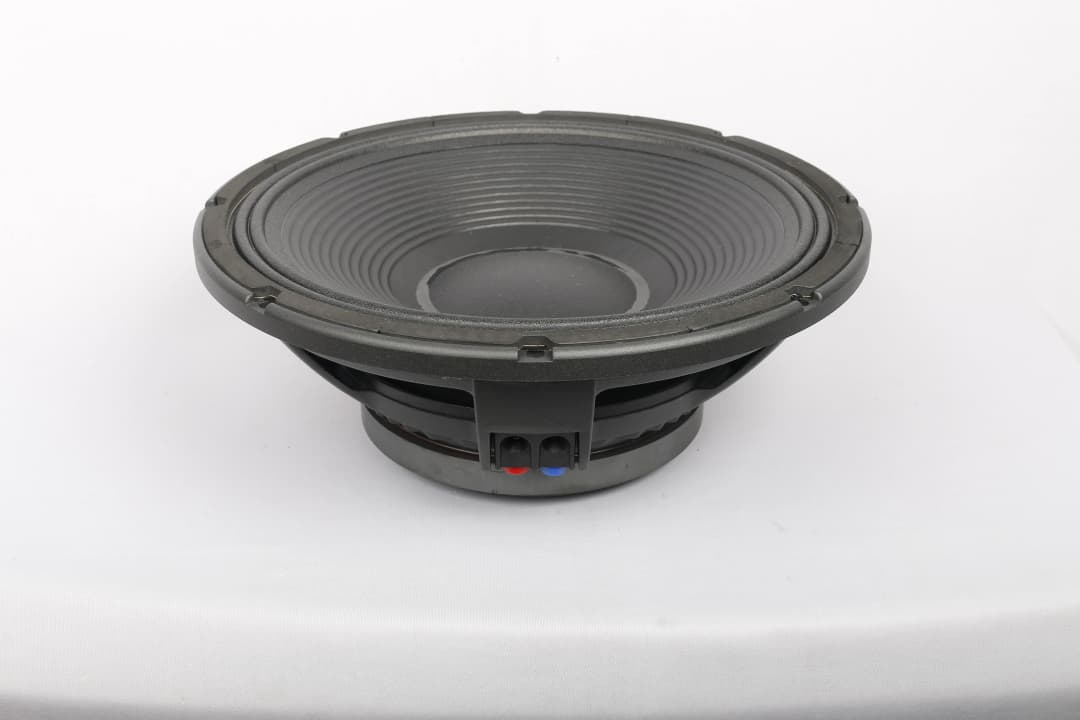

15" 15737 DELUXE BY ACR

Features

Very Low Distortion thanks to the use of an "M" roll-type surround.
4-inch Voice Coil with minimal damping, using a non-conductive former and heat-resistant coil wire.
Water-Resistant Coating applied to both the cone paper and dust cap, providing better weather resistance.
Cooling-Technology Chassis with added fins on the bottom of the chassis to help dissipate heat from the motor system.

Specifications
Speaker Diameter	15 inch
Impedance	8 Ω
Nominal Power Handling⁽¹⁾	400 W
Program Power⁽²⁾	800 W

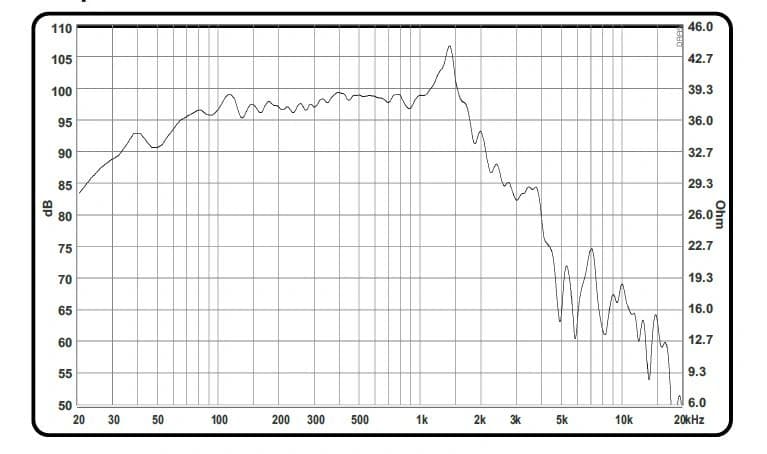

Frequency Response	38 - 3200 Hz
Sensitivity	97 dB
Magnetic flux density	1.1 T
Magnet Weight	2.56 kg
Voice Coil Diameter	99.2 mm
Voice Coil Material	Till

Thiele-Small Parameters
Fs	38 Hz
DCR	5.6 Ω
Qts	0.45
Qes	0.46
Qms	16.14
Mms	127 g
Cms	0.14 mm/N
BL Product	19.4 Tm
Vas	137.5 litres
No	1.59 %
Sd	845 cm²
Xmax	8.6 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
