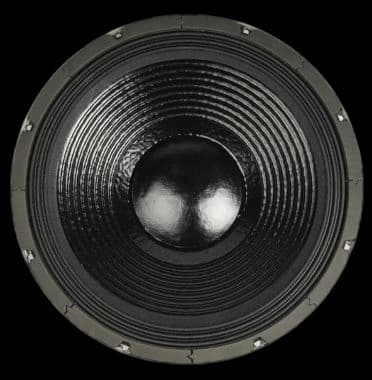

15" 15710 DLX

Features

Heat Resistant
The speaker’s voice coil is designed using a glass fiber former and heat-resistant coil wire, allowing it to withstand high temperatures.
Special Chassis Design
The chassis is made from specially engineered, durable aluminum die-cast material.
Low Compression
The motor is precisely designed with added ventilation to eliminate air compression and ensure proper airflow for cooling.
Optimal Magnetic Power
Uses high-grade magnets and is designed with the help of the latest simulation software to achieve optimal magnetic performance.

Specifications
Speaker Diameter	15 inch

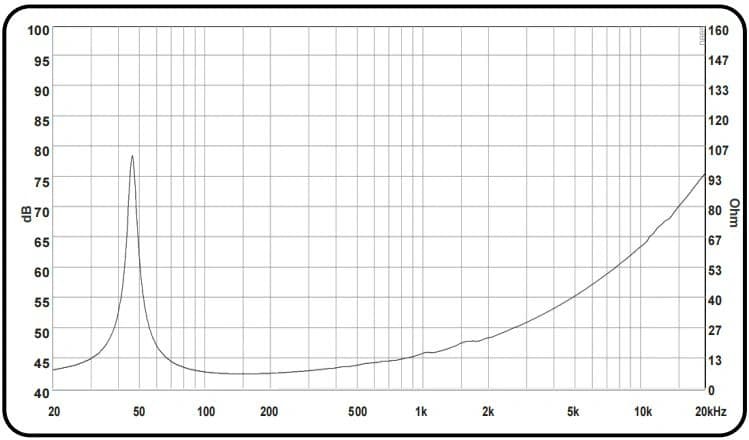

Impedance	8 Ω
Nominal Power Handling⁽¹⁾	900 W
Program Power⁽²⁾	1800 W

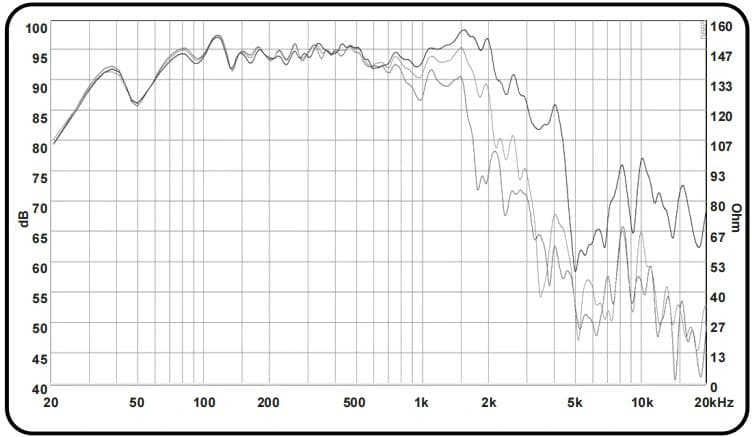

Frequency Response	46 – 4200 Hz
Sensitivity	98 dB
Magnetic flux density	1.02 T
Magnet Weight	2.56 kg
Speaker Weight	9.96 kg
Voice Coil Diameter	99.20 mm
Voice Coil Material	Unisheet

Thiele-Small Parameters
Fs	47.2 Hz
DCR	5.2 Ω
Qts	0.5
Qes	0.52
Qms	9.86
Mms	116 g
Cms	0.1 mm/N
BL Product	18.3 Tm
Vas	105.8 litres
No	1.96 %
Sd	865.7 cm²
Xmax	10.9 mm

(1) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air

(2) Power on continous program is defined as 3dB greater than nominal power handling.
