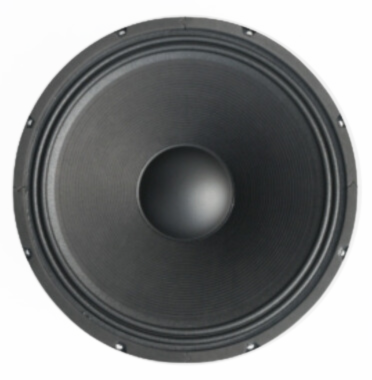

15″ ACR 15600+ BLACK

15600 + (atas)-1
Categories: , , , , .
  • Description
  • Reviews (0)

Product Description


pdf-icon

 datasheet

SPECIFICATION    (Preliminary Data)

Diameter Speaker (inch/mm)
Impedansi (Ω)
Maximum power (Watt)*
Lebar daerah frekuensi (Hz)
SPL (2.83 V / 1 m) (dB)
Diameter cone efektif (mm)
Medan magnet (T)
Berat magnet (Kg/Oz)
Voice coil diameter (mm)
Voice coil material
15 inch / 381 mm
8 Ω
500 Watt*
40 Hz – 4.2 KHz
95 dB
327 mm
1.1 T
1.83 kg / 64.05 Oz
60.55 mm
Till



THIELE SMALL PARAMETER

Frekuensi Resonansi / Fs (Hz)
DCR (Ω)
Qts
Qes
Qms
Mms (g)
Cms (mm/N)
BL Product (Tm)
Vas (liters)
No (%)
Sd (cm2)
Xmax (mm)
40 Hz
6.8 Ω
0.54
0.57
10
78.7 g
0.19 mm/N
15.8 Tm
183.1 liters
2.16 %
820 cm²
5.5 mm
– (¹) AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours)
within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air
– (²) Power on continous program is defined as 3dB greater than nominal power handling.
